Seco Tools 10137343 | BT40ADB-HCS12-150 25.00mm Body Diameter x 3.937" Body Length Hydraulic Chuck

$845.00 $583.05
(You save $261.95)
Brand:
Seco Tools
Body Diameter (Inch):
61/62"
Body Diameter (Decimal Inch):
0.9840"
Body Diameter (mm):
25.00mm
Overall Length (Inch):
8-12/25"
Overall Length (Decimal Inch):
8.4800"
Overall Length (mm):
215.40mm
interval quantity:
1
SKU:
55076274
UPC:
Weight:
3.75 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Seco Tools 10137343 | BT40ADB-HCS12-150 25.00mm Body Diameter x 3.937" Body Length Hydraulic Chuck

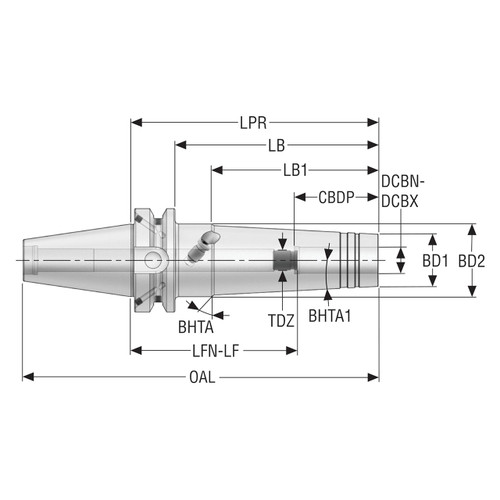

Product Specifications
Manufacturer Part Number10137343
Connection Bore Diameter (Decimal Inch)0.472"
Connection Bore Diameter (mm)12.00mm
Minimum Connection Bore Diameter (Decimal Inch)0.472"
Minimum Connection Bore Diameter (mm)12.00mm
Maximum Connection Bore Diameter (Decimal Inch)0.472"
Maximum Connection Bore Diameter (mm)12.00mm
Body Diameter 1 (Decimal Inch)0.984"
Body Diameter 1 (mm)25.00mm
Body Diameter 2 (Decimal Inch)1.752"
Body Diameter 2 (mm)44.50mm
Thread Diameter SizeM10x1
Connection Bore Depth (Decimal Inch)0
Connection Bore Depth (mm)47.00mm
Body Length (Decimal Inch)4.843"
Body Length (mm)123.00mm
Body Length 1 (Decimal Inch)3.937"
Body Length 1 (mm)100.00mm
Functional Length (Decimal Inch)4.528"
Functional Length (mm)115.00mm
Minimum Functional Length (Decimal Inch)4.134"
Minimum Functional Length (mm)105.00mm
Protruding Length (Decimal Inch)5.906"
Protruding Length (mm)150.00mm
Overall Length (Decimal Inch)8.480"
Overall Length (mm)215.40mm
Body Half Taper Angle Degree)30 Degree
Data Chip Provision1
Machine Side GroupBT & BT Taper-face
Product TypeHydraulic Chuck
