Seco Tools 10139084 | T34-R45H21C09-1/8-28-12R G1/8-28 Thread Size x 0.383" Diameter x 0.276" Shank x 3.543" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM British Standard Pipe Tap

$100.00 $69.00
(You save $31.00)
Brand:
Seco Tools
Number of Flutes:
3
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
90.00mm
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Size:
G1/8-28
Thread Standard:
G
interval quantity:
1
SKU:
17993964
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139084 | T34-R45H21C09-1/8-28-12R G1/8-28 Thread Size x 0.383" Diameter x 0.276" Shank x 3.543" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM British Standard Pipe Tap

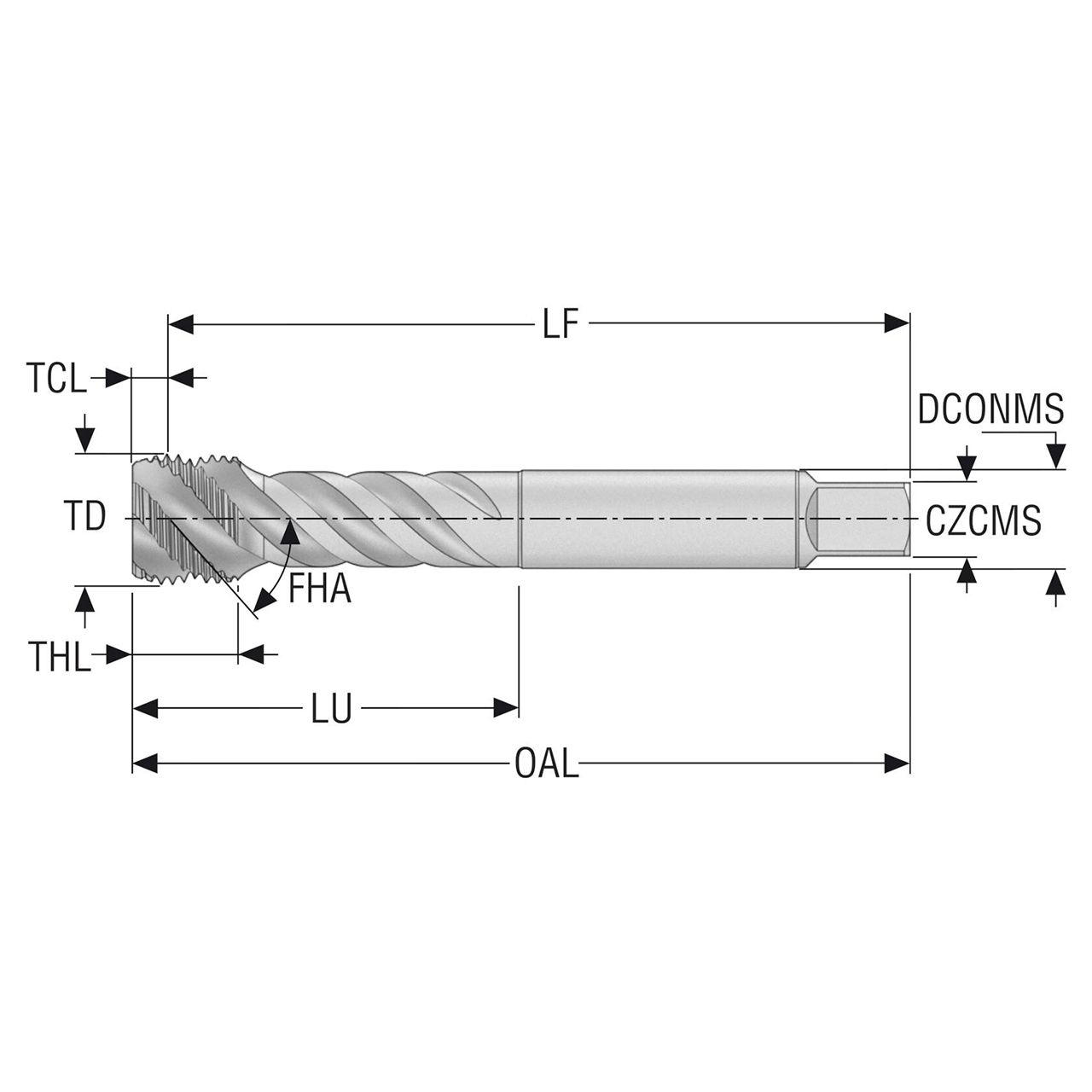

Product Specifications
Manufacturer Part Number10139084
Thread Diameter (Decimal Inch)0.383"
Thread Diameter (mm)9.73mm
Threading Chamfer Length (Decimal Inch)0.096"
Threading Chamfer Length (mm)2.43mm
Tap Chamfer Length (Decimal Inch)0.096"
Tap Chamfer Length (mm)2.43mm
Connection Diameter Machine Side (Decimal Inch)0.276"
Connection Diameter Machine Side (mm)7.00mm
Shank Diameter (Decimal Inch)0.276"
Shank Diameter (mm)7.00mm
Functional Length (Decimal Inch)3.448"
Functional Length (mm)87.57mm
Usable Length (Decimal Inch)1.417"
Usable Length (mm)36.00mm
Overall Length (Decimal Inch)3.543"
Overall Length (mm)90.00mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeG1/8-28
Recommended Premachined Hole Diameter (Decimal Inch)0.347"
Recommended Premachined Hole Diameter (mm)8.80mm
Connection Size Code7.00X5.50
Connection Size Code Machine Side7.00X5.50
Maximum Premachined Hole Diameter (Decimal Inch)0.348"
Maximum Premachined Hole Diameter (mm)8.85mm
Minimum Threads Per Inch (mm)28.00mm
Maximum Threads Per Inch (mm)28.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance ClassNormal-X
Threading Chamfer TypeC
Thread Form TypeG
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeBritish Standard Pipe Tap
