Seco Tools 10139086 | T34-R45H21C09-3/8-19-12R G3/8-19 Thread Size x 0.656" Diameter x 0.472" Shank x 3.937" OAL 4 Flute TiAIN+WC/C Coated HSS-E-PM British Standard Pipe Tap

$112.47
Brand:
Seco Tools
Number of Flutes:
4
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Size:
G3/8-19
Thread Standard:
G
interval quantity:
1
SKU:
17993966
Weight:
0.17 LBS
Shipping:
Free Shipping
Seco Tools 10139086 | T34-R45H21C09-3/8-19-12R G3/8-19 Thread Size x 0.656" Diameter x 0.472" Shank x 3.937" OAL 4 Flute TiAIN+WC/C Coated HSS-E-PM British Standard Pipe Tap

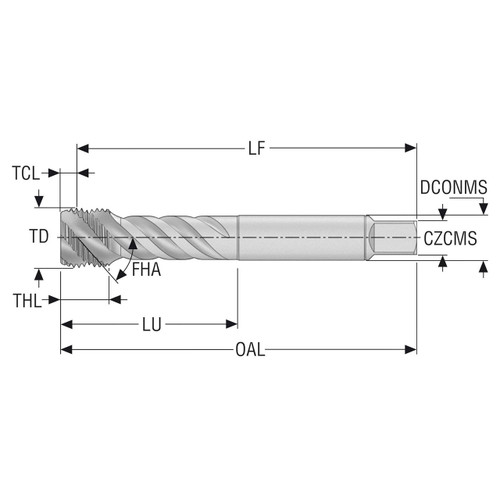

Product Specifications
Manufacturer Part Number10139086
Thread Diameter (Decimal Inch)0.656"
Thread Diameter (mm)16.66mm
Threading Chamfer Length (Decimal Inch)0.145"
Threading Chamfer Length (mm)3.67mm
Tap Chamfer Length (Decimal Inch)0.145"
Tap Chamfer Length (mm)3.67mm
Connection Diameter Machine Side (Decimal Inch)0.472"
Connection Diameter Machine Side (mm)12.00mm
Shank Diameter (Decimal Inch)0.472"
Shank Diameter (mm)12.00mm
Functional Length (Decimal Inch)3.793"
Functional Length (mm)96.33mm
Usable Length (Decimal Inch)2.284"
Usable Length (mm)58.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeG3/8-19
Recommended Premachined Hole Diameter (Decimal Inch)0.600"
Recommended Premachined Hole Diameter (mm)15.25mm
Connection Size Code12.00X9.00
Connection Size Code Machine Side12.00X9.00
Maximum Premachined Hole Diameter (Decimal Inch)0.606"
Maximum Premachined Hole Diameter (mm)15.40mm
Minimum Threads Per Inch (mm)19.00mm
Maximum Threads Per Inch (mm)19.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute4
Shank TypeCylindrical
Thread Tolerance ClassNormal-X
Threading Chamfer TypeC
Thread Form TypeG
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeBritish Standard Pipe Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Number of Flutes:
4
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Size:
G3/8-19
Thread Standard:
G
interval quantity:
1
