Seco Tools 10139249 | T33-FSN09C05-7/16-20-22R UNF7/16-20 Thread Size x 11.11mm Diameter x 8.00mm Shank x 100.00mm OAL 5 Flute TiAIN+TiN Coated HSS-E Thread Forming Tap

$186.00 $128.34
(You save $57.66)
Brand:
Seco Tools
Thread Size:
UNF7/16-20
Number of Flutes:
5
Finish/Coating:
TiAIN+TiN
Material:
HSS-E
Thread Standard:
UNF
interval quantity:
1
SKU:
17994125
UPC:
Weight:
0.09 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139249 | T33-FSN09C05-7/16-20-22R UNF7/16-20 Thread Size x 11.11mm Diameter x 8.00mm Shank x 100.00mm OAL 5 Flute TiAIN+TiN Coated HSS-E Thread Forming Tap

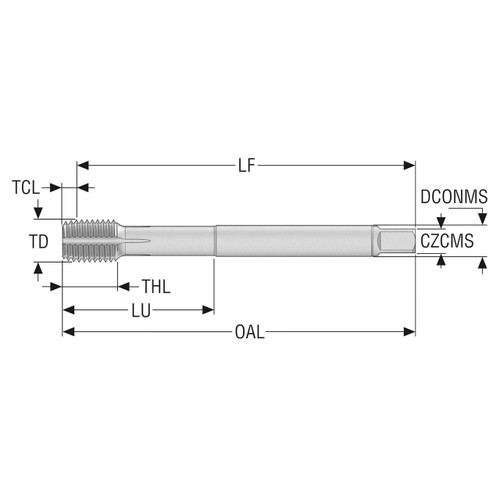

Product Specifications
Manufacturer Part Number10139249
Thread Diameter (Decimal Inch)0.438"
Thread Diameter (mm)11.11mm
Threading Chamfer Length (Decimal Inch)0.150"
Threading Chamfer Length (mm)3.80mm
Tap Chamfer Length (Decimal Inch)0.150"
Tap Chamfer Length (mm)3.80mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.787"
Functional Length (mm)96.20mm
Usable Length (Decimal Inch)2.992"
Usable Length (mm)76.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeUNF7/16-20
Recommended Premachined Hole Diameter (Decimal Inch)0.415"
Recommended Premachined Hole Diameter (mm)10.55mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.415"
Maximum Premachined Hole Diameter (mm)10.55mm
Minimum Threads Per Inch (mm)20.00mm
Maximum Threads Per Inch (mm)20.00mm
Number of Flute5
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT33
Cutting Geometry Type TechnicalOil grooves
MaterialHSS-E
CoatingTiAIN+TiN
Product TypeThread Forming Tap
