Product Specifications

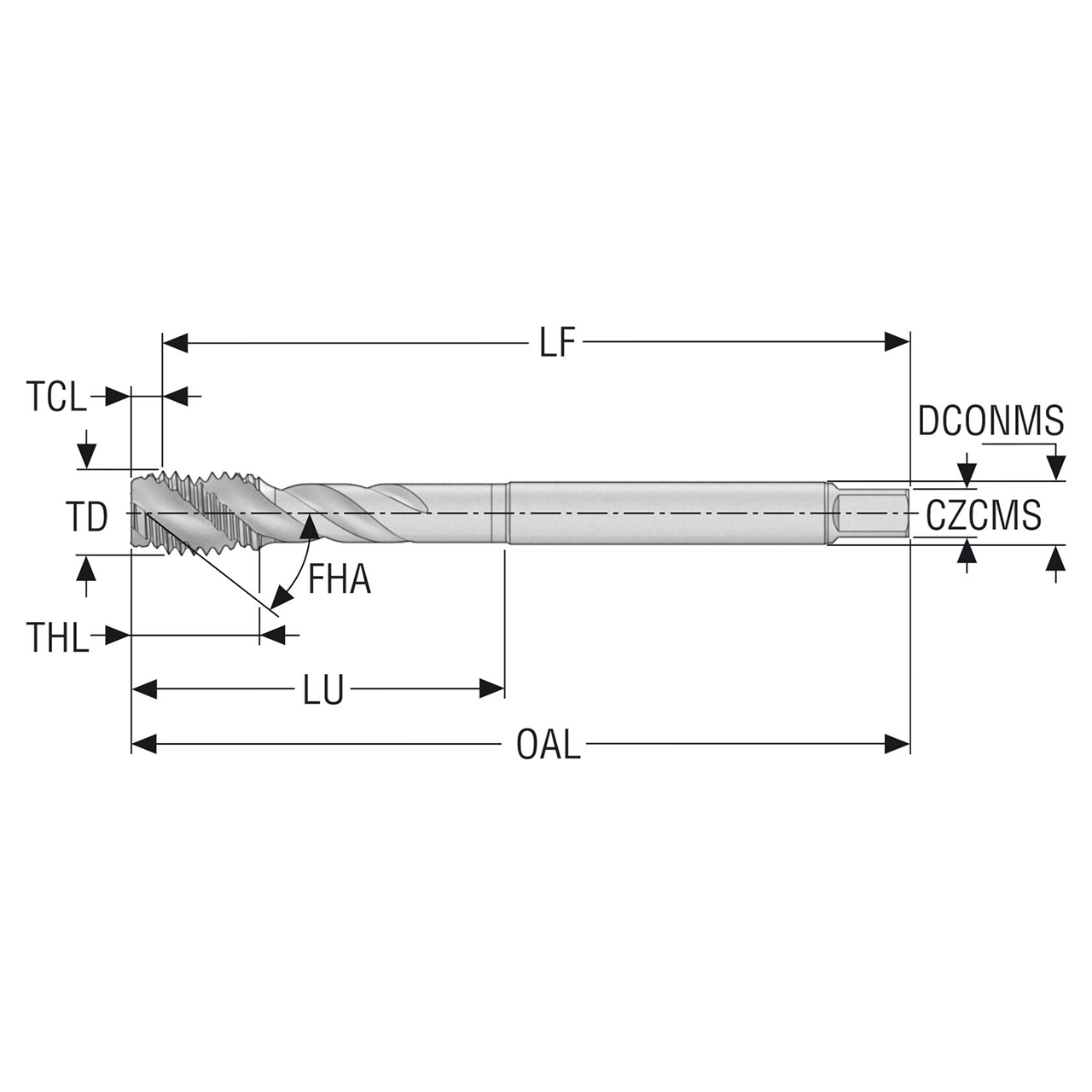

| Manufacturer Part Number | 10139618 |
| Thread Diameter (Decimal Inch) | 1.375" |
| Thread Diameter (mm) | 34.93mm |
| Threading Chamfer Length (Decimal Inch) | 0.413" |
| Threading Chamfer Length (mm) | 10.50mm |
| Tap Chamfer Length (Decimal Inch) | 0.413" |
| Tap Chamfer Length (mm) | 10.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.102" |
| Connection Diameter Machine Side (mm) | 28.00mm |
| Shank Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (mm) | 28.00mm |
| Functional Length (Decimal Inch) | 7.461" |
| Functional Length (mm) | 189.50mm |
| Usable Length (Decimal Inch) | 5.158" |
| Usable Length (mm) | 131.00mm |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Thread Length (Decimal Inch) | 1.575" |
| Thread Length (mm) | 40.00mm |
| Thread Diameter Size | UNC13/8-6 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.211" |
| Recommended Premachined Hole Diameter (mm) | 30.75mm |
| Connection Size Code | 28.00X22.00 |
| Connection Size Code Machine Side | 28.00X22.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.225" |
| Maximum Premachined Hole Diameter (mm) | 31.12mm |
| Minimum Threads Per Inch (mm) | 6.00mm |
| Maximum Threads Per Inch (mm) | 6.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Thread Size:
UNC13/8-6
Number of Flutes:
4
Material:
HSS-E
Finish/Coating:
TiAIN+TiN
Overall Length (Inch):
7-7/8"
Overall Length (Decimal Inch):
7.8740"
Overall Length (mm):
200.00mm
