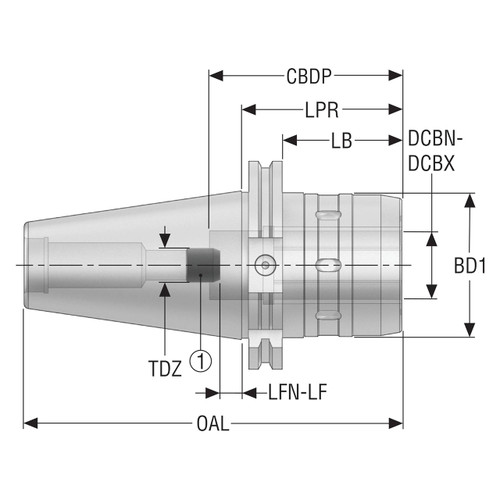

Product Specifications
| Manufacturer Part Number | 10185645 |
| Connection Bore Diameter (mm) | 32.00mm |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (mm) | 32.00mm |
| Body Diameter 1 (mm) | 68.00mm |
| Thread Diameter Size | M16 |
| Connection Bore Depth (mm) | 90.00mm |
| Keyway Width (mm) | 8.00mm |
| Body Length (mm) | 55.90mm |
| Protruding Length (mm) | 75.00mm |
| Overall Length (mm) | 176.80mm |
| Data Chip Provision | 1 |
| Machine Side Group | DIN & DIN Taper-Face |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Product Type | Milling Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
2-13/64"
Body Diameter (Decimal Inch):
2.2000"
Body Diameter (mm):
55.90mm
interval quantity:
1
