Product Specifications

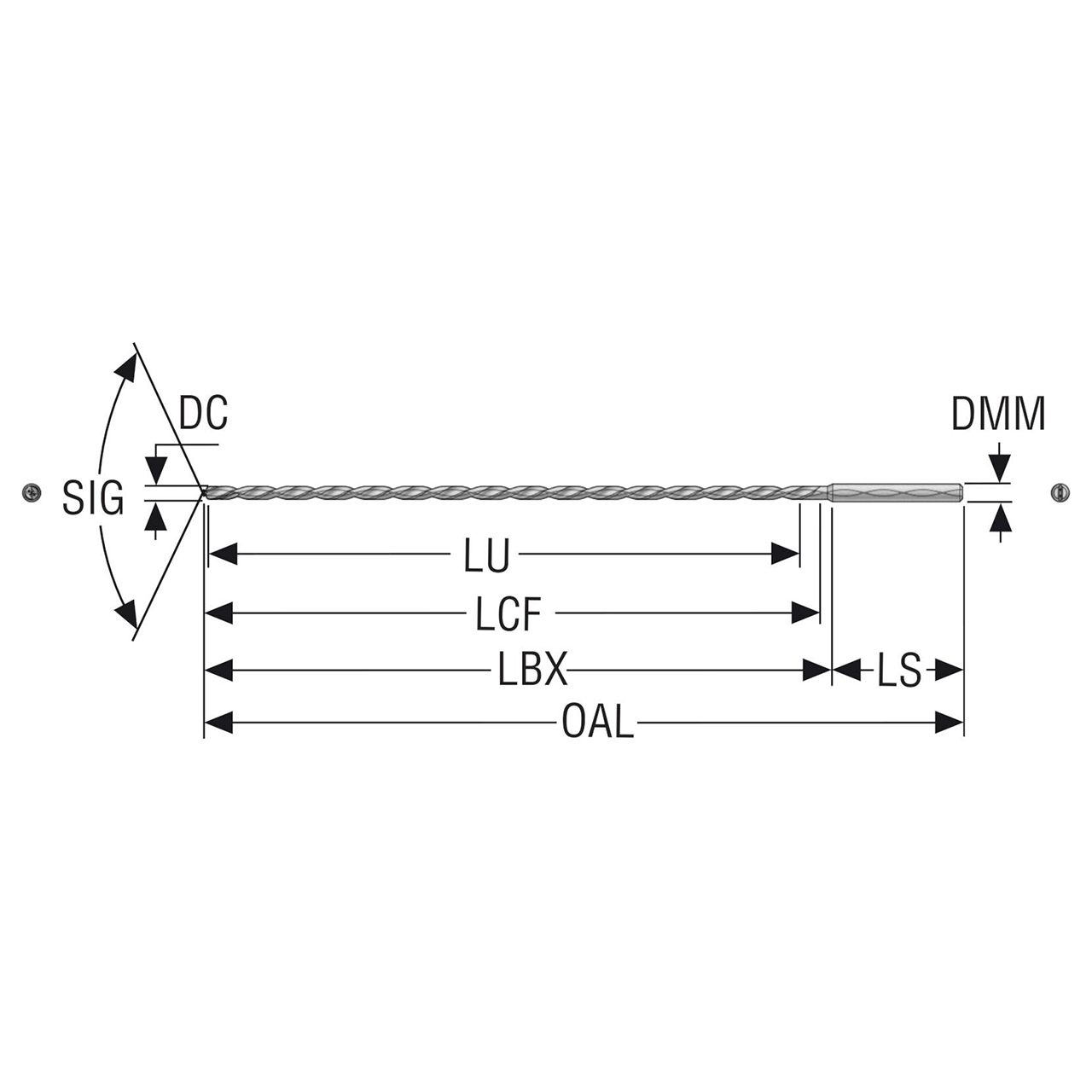

| Manufacturer Part Number | 10188293 |
| Cutting Diameter (mm) | 5.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Shank Length (mm) | 36.00mm |
| Usable Length (mm) | 300.00mm |
| Overall Length (mm) | 350.00mm |
| Corner Chamfer Width (mm) | 0.10mm |
| Shank Type | Cylindrical |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Tool Cutting Edge Angle (Degree) | 66.5 Degree |
| Corner Chamfer Angle (Degree) | 33.25 Degree |
| Point Angle (Degree) | 133 Degree |
| Material | Carbide |
| Product Type | Extra Long Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Overall Length (Inch):
13-25/32"
Overall Length (Decimal Inch):
13.7800"
Overall Length (mm):
350.00mm
Drill Point Angle:
133 Degree
Shank Type:
Cylindrical
