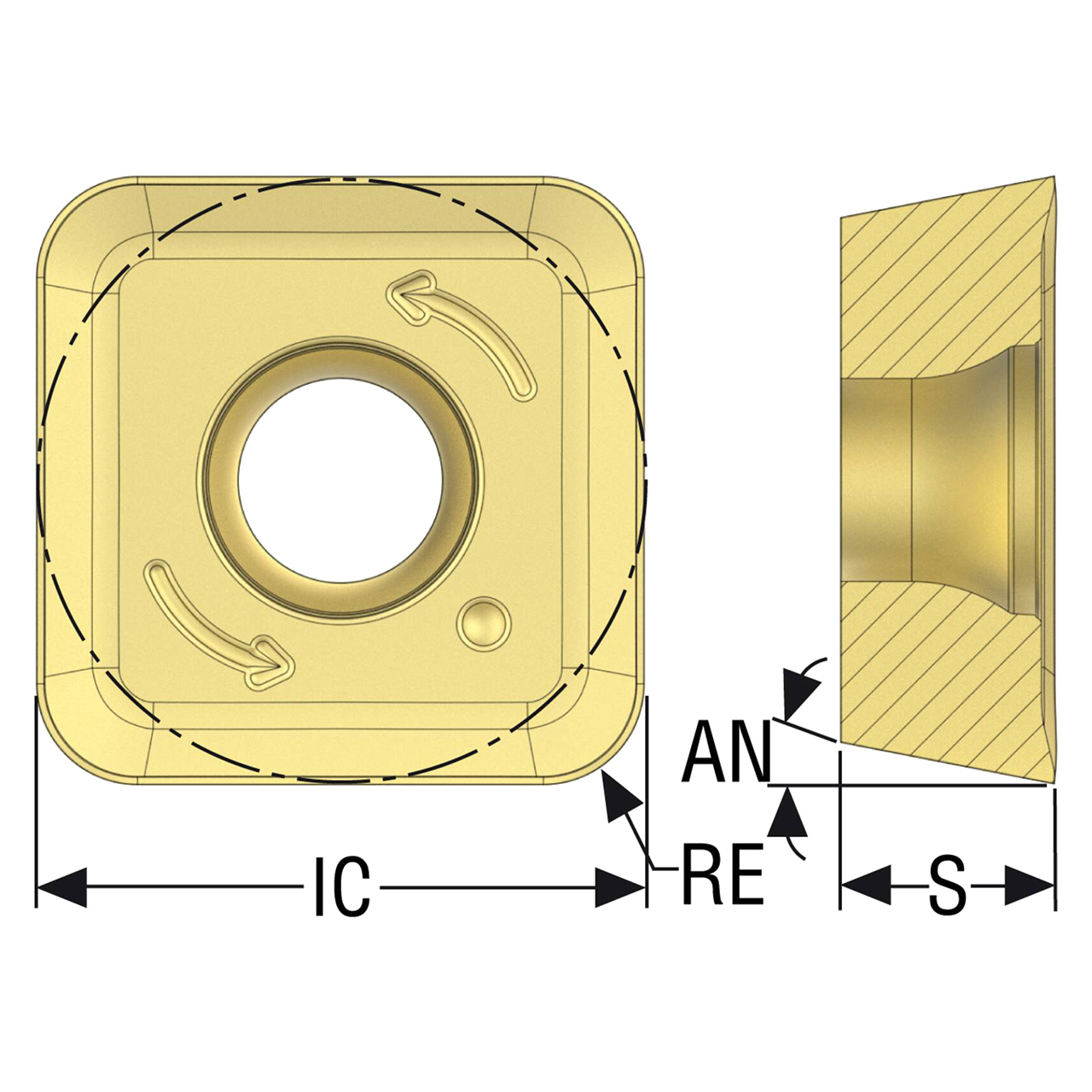

Seco Tools 10198707 | SPKT180630TN-M14 3.00mm Corner Radius x 6.35mm Thickness 4 Cutting Edge Carbide Milling Insert

$34.40 $26.49
(You save $7.91)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Decimal Inch):
0.7087"
Inscribed Circle (mm):
18.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
interval quantity:
10
SKU:
23295194
UPC:
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 10198707 | SPKT180630TN-M14 3.00mm Corner Radius x 6.35mm Thickness 4 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198707
Fixing Hole Diameter (mm)6.00mm
Inscribed Circle Diameter (mm)18.00mm
Cutting Edge Effective Length (mm)15.00mm
Theoretical Cutting Edge Length (mm)18.00mm
Corner Radius (mm)3.00mm
Insert Thickness (mm)6.35mm
Cutting Edge Count4
Clearance Angle Major (Degree)11 Degree
Insert Rake Angle (Degree)12 Degree
Insert HandNeutral
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterSPKT180630
Insert Size And ShapeSPKT180630
Insert Shape CodeS
MaterialCarbide
Product TypeMilling Insert
