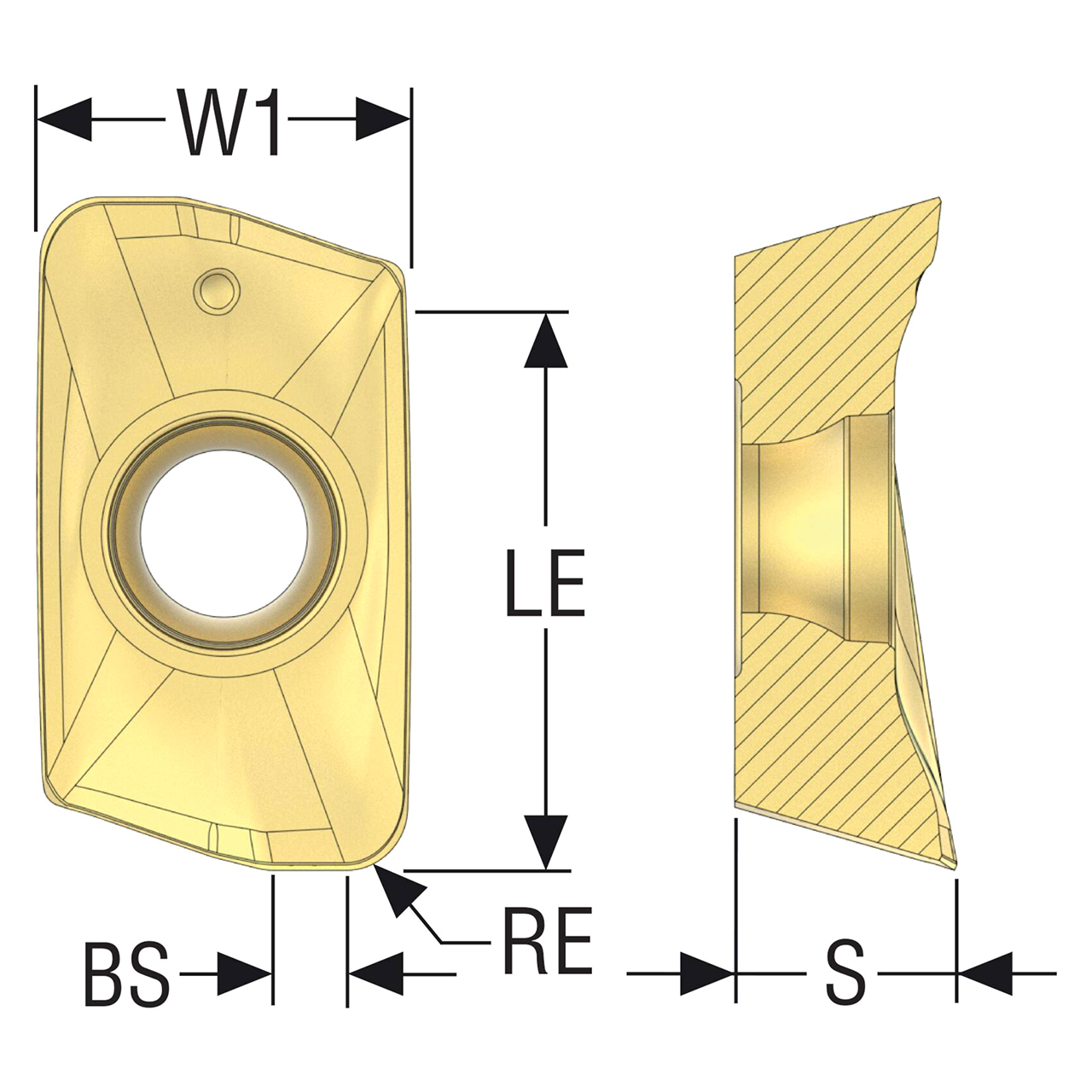

Seco Tools 10198761 | XOMX120408TR-M12 0.80mm Corner Radius x 5.07mm Thickness 2 Cutting Edge Carbide Milling Insert

$19.94
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
10/31"
Width (Decimal Inch):
0.3228"
Width (mm):
8.20mm
Thickness (Inch):
1/5"
Thickness (Decimal Inch):
0.1996"
Thickness (mm):
5.07mm
interval quantity:
1
SKU:
23295135
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 10198761 | XOMX120408TR-M12 0.80mm Corner Radius x 5.07mm Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198761
Fixing Hole Diameter (mm)3.90mm
Cutting Edge Effective Length (mm)11.60mm
Wiper Edge Length (mm)1.60mm
Corner Radius (mm)0.80mm
Insert Thickness (mm)5.07mm
Cutting Edge Count2
Clearance Angle Major (Degree)15 Degree
Insert Rake Angle (Degree)10.4 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM12
Pocket Seat Code of The CutterXO.X1204
Insert Size And ShapeXOMX1204
MaterialCarbide
Product TypeMilling Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Width (Inch):
10/31"
Width (Decimal Inch):
0.3228"
Width (mm):
8.20mm
Thickness (Inch):
1/5"
Thickness (Decimal Inch):
0.1996"
Thickness (mm):
5.07mm
interval quantity:
1
