Seco Tools 10198762 | XOMX120408TR-ME08 0.80mm Corner Radius x 5.07mm Thickness 2 Cutting Edge Carbide Milling Insert

$27.00 $20.79
(You save $6.21)
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
10/31"
Width (Decimal Inch):
0.3228"
Width (mm):
8.20mm
Thickness (Inch):
1/5"
Thickness (Decimal Inch):
0.1996"
Thickness (mm):
5.07mm
interval quantity:
10
SKU:
23295137
UPC:
Weight:
0.01 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 10198762 | XOMX120408TR-ME08 0.80mm Corner Radius x 5.07mm Thickness 2 Cutting Edge Carbide Milling Insert

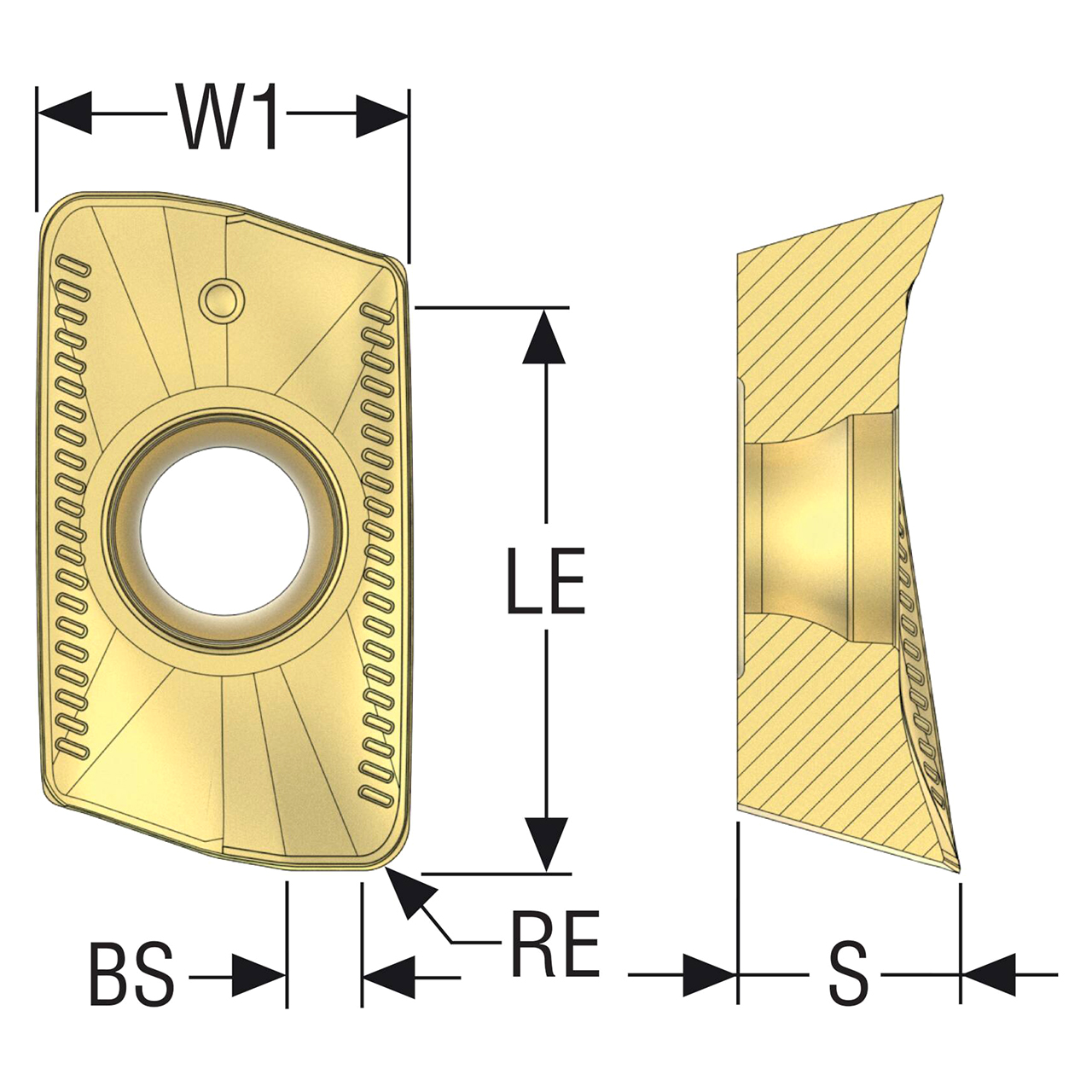

Product Specifications
Manufacturer Part Number10198762
Fixing Hole Diameter (mm)3.90mm
Cutting Edge Effective Length (mm)11.60mm
Wiper Edge Length (mm)1.60mm
Corner Radius (mm)0.80mm
Insert Thickness (mm)5.07mm
Cutting Edge Count2
Clearance Angle Major (Degree)15 Degree
Insert Rake Angle (Degree)20.1 Degree
Insert HandRight Hand
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME08
Pocket Seat Code of The CutterXO.X1204
Insert Size And ShapeXOMX1204
MaterialCarbide
Product TypeMilling Insert
