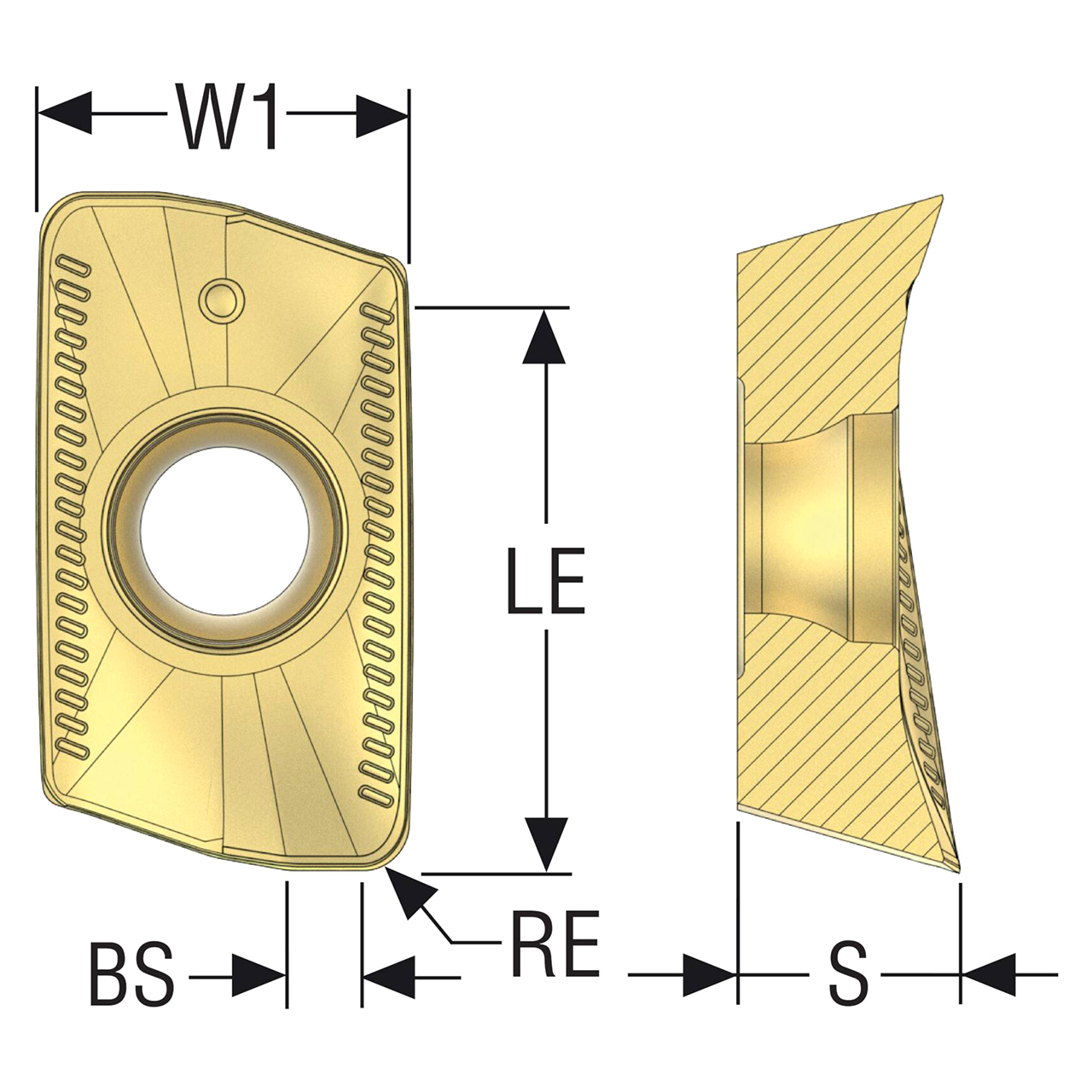

Seco Tools 10198791 | XOMX120416TR-ME08 1.60mm Corner Radius x 5.07mm Thickness 2 Cutting Edge Carbide Milling Insert

$19.94
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
10/31"
Width (Decimal Inch):
0.3228"
Width (mm):
8.20mm
Thickness (Inch):
1/5"
Thickness (Decimal Inch):
0.1996"
Thickness (mm):
5.07mm
interval quantity:
1
SKU:
23295140
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number10198791
Fixing Hole Diameter (mm)3.90mm
Cutting Edge Effective Length (mm)11.60mm
Wiper Edge Length (mm)1.20mm
Corner Radius (mm)1.60mm
Insert Thickness (mm)5.07mm
Cutting Edge Count2
Clearance Angle Major (Degree)15 Degree
Insert Rake Angle (Degree)20.1 Degree
Insert HandRight Hand
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME08
Pocket Seat Code of The CutterXO.X1204
Insert Size And ShapeXOMX1204
MaterialCarbide
Product TypeMilling Insert
