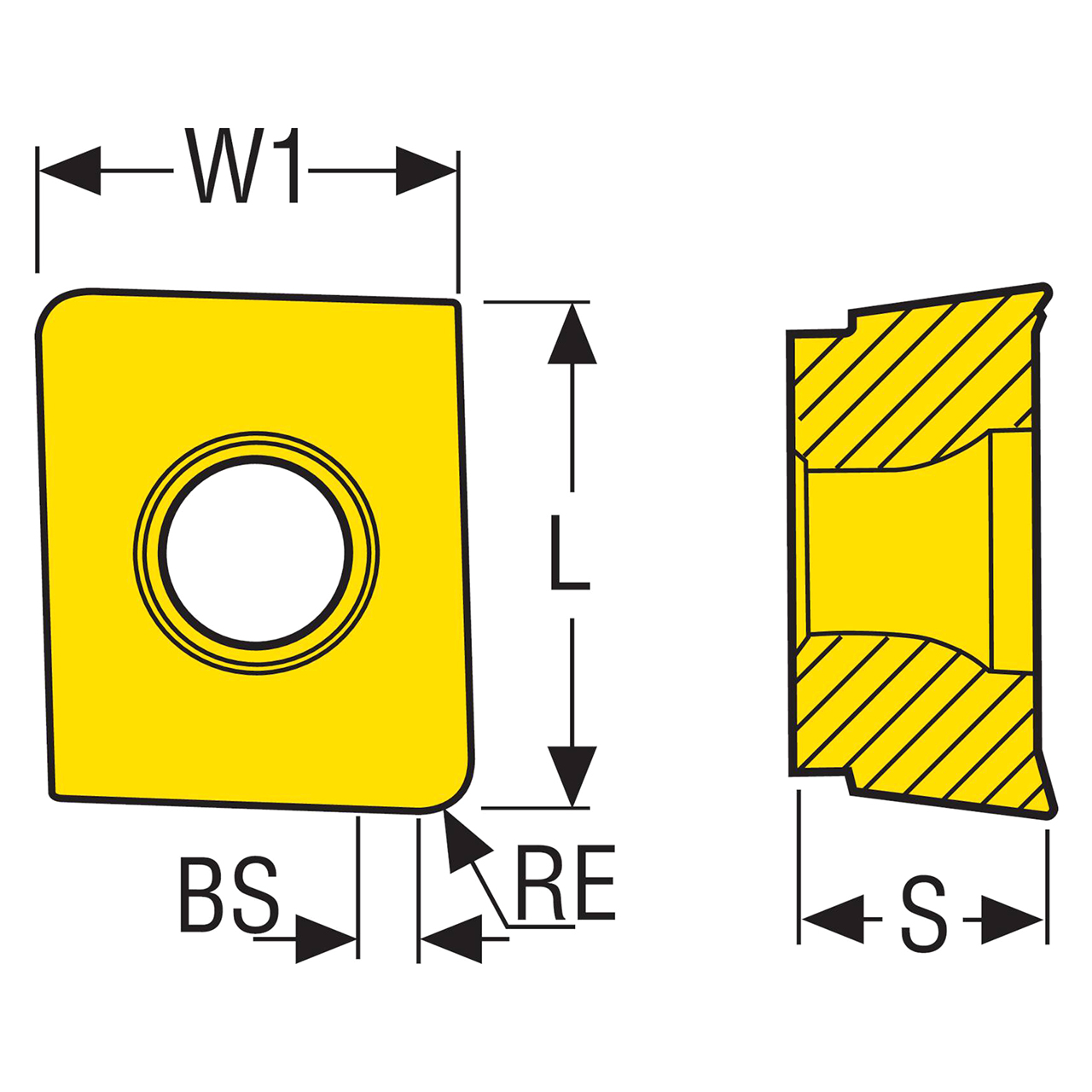

Seco Tools 10198819 | ACET150612TR-M14 1.20mm Corner Radius x 6.35mm Thickness 2 Cutting Edge Carbide Milling Insert

$28.97
Brand:
Seco Tools
Material:
Carbide
Width (Inch):
1/2"
Width (Decimal Inch):
0.5000"
Width (mm):
12.70mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
interval quantity:
1
SKU:
23295245
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 10198819 | ACET150612TR-M14 1.20mm Corner Radius x 6.35mm Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10198819
Fixing Hole Diameter (mm)5.60mm
Cutting Edge Effective Length (mm)14.80mm
Theoretical Cutting Edge Length (mm)15.00mm
Wiper Edge Length (mm)0.13mm
Corner Radius (mm)1.20mm
Insert Thickness (mm)6.35mm
Cutting Edge Count2
Clearance Angle Major (Degree)7 Degree
Insert Included Angle (Degree)86 Degree
Insert Rake Angle (Degree)15 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterAC.T1506
Insert Size And ShapeACET1506
Insert Shape CodeA
MaterialCarbide
Product TypeMilling Insert
