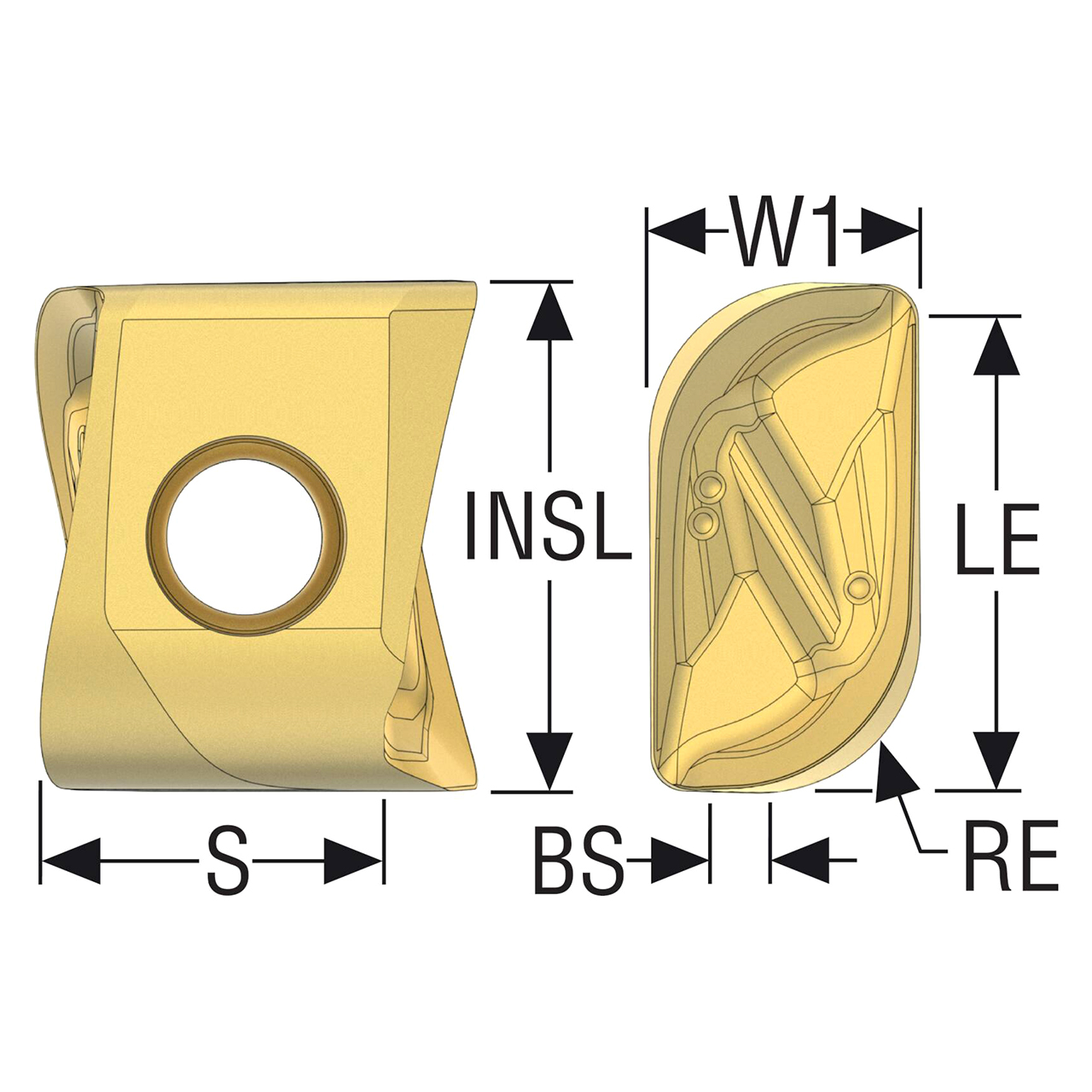

Seco Tools 10207785 | LOEX120763R-T2-M09 6.30mm Corner Radius x 9.28mm Thickness 2 Cutting Edge Carbide Milling Insert

$41.50 $31.96
(You save $9.54)
Brand:
Seco Tools
Material:
Carbide
Width (Decimal Inch):
0.2953"
Width (mm):
7.50mm
Length (Decimal Inch):
0.5591"
Length (mm):
14.20mm
Thickness (Decimal Inch):
0.3654"
Thickness (mm):
9.28mm
interval quantity:
10
SKU:
23295094
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 10207785 | LOEX120763R-T2-M09 6.30mm Corner Radius x 9.28mm Thickness 2 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10207785
Cutting Edge Effective Length (mm)12.00mm
Wiper Edge Length (mm)0.43mm
Insert Length (mm)14.20mm
Corner Radius (mm)6.30mm
Insert Thickness (mm)9.28mm
Cutting Edge Count2
Insert Rake Angle (Degree)36 Degree
Insert HandRight Hand
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM09
Pocket Seat Code of The CutterLO.X1207
Insert Size And ShapeLOEX1207
Insert Shape CodeL
MaterialCarbide
Product TypeMilling Insert
