Product Specifications
| Manufacturer Part Number | 10215190 |
| Cutting Diameter (mm) | 50.80mm |
| Connection Bore Diameter (mm) | 25.40mm |

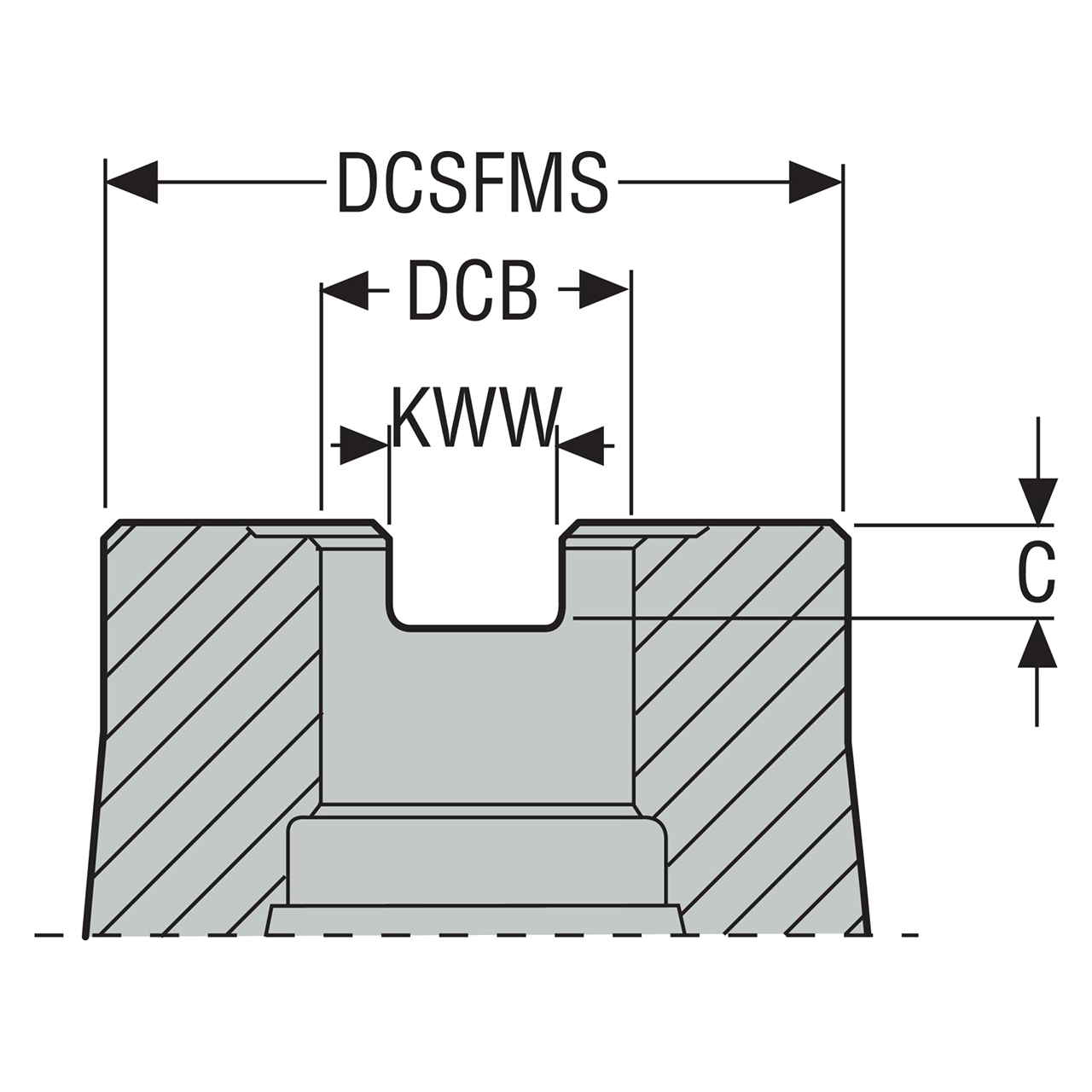

| Contact Surface Diameter Machine Side (mm) | 47.30mm |
| Functional Length (mm) | 70.00mm |
| Maximum Depth of Cut (mm) | 46.00mm |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (mm) | 9.75mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -23.5 Degree |
| Rake Radial Angle (Degree) | -23.5 Degree |
| Rake Orthogonal Angle (Degree) | -23.5 Degree |
| Axial Rake Angle (Degree) | -5.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Rotational Speed (rpm) | 9900 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2"
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Shank Type:
Arbor
interval quantity:
1
