Product Specifications
| Manufacturer Part Number | 10318925 |
| Maximum Depth of cut in Feed Direction Side (Decimal Inch) | 1.000" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Neck Diameter (Decimal Inch) | 0.473" |
| Neck Length (Decimal Inch) | 2.500" |
| Overall Length (Decimal Inch) | 4.500" |
| Corner Radius (Decimal Inch) | 0.120" |
| Coolant Supply Property | Yes |
| Series | S4931 |
| Number of Flutes | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Shank Type | Cylindrical |
| Helix Angle (Degree) | 37.50 Degree |
| Coating | AXT |

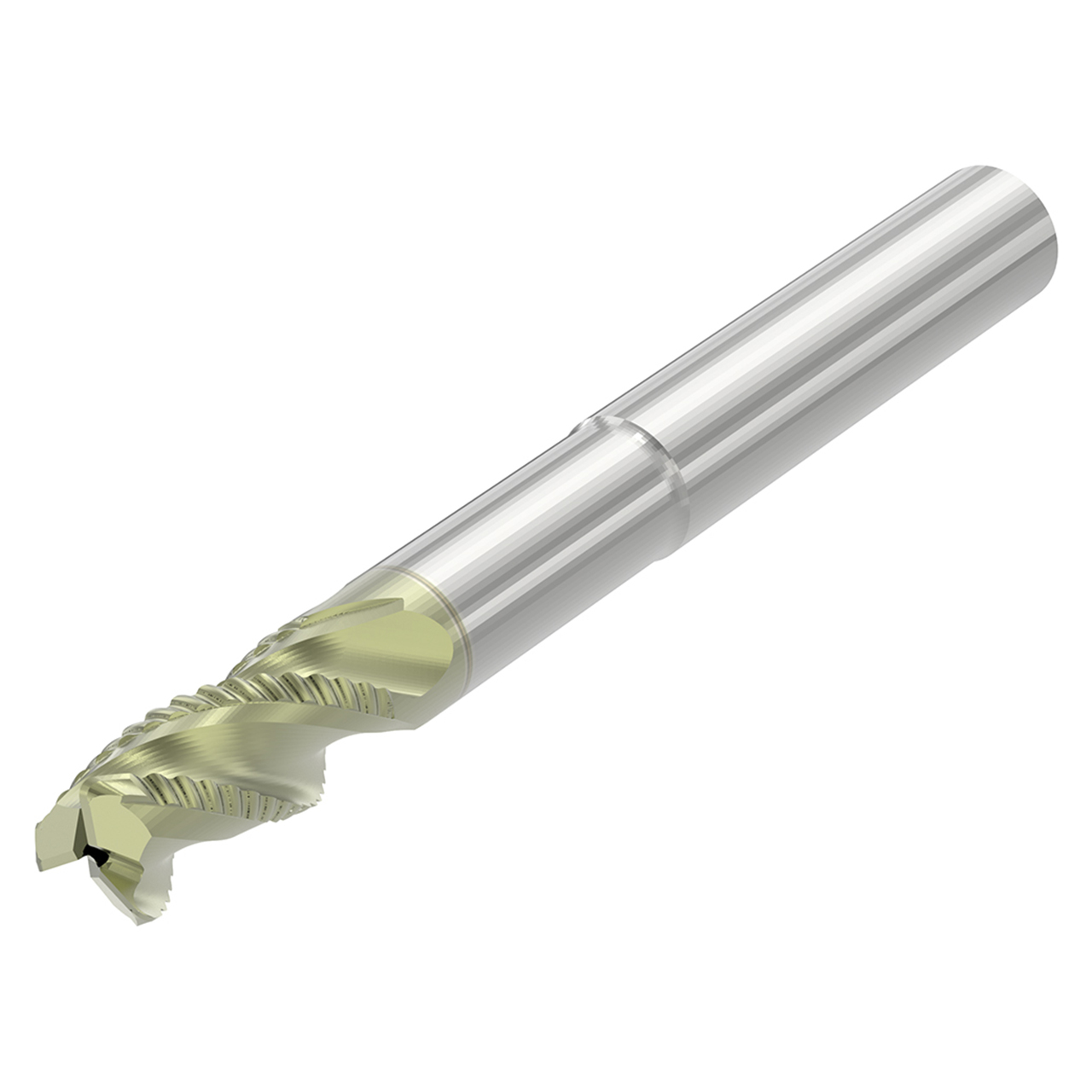

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Decimal Inch):
0.5000"
Shank Diameter (Decimal Inch):
0.5000"
Overall Length (Decimal Inch):
4.5000"
Corner Radius (Decimal Inch):
0.1200"
Helix Angle:
37.50 Degree
Number of Flutes:
3
Grade:
AXT
Shank Type:
Cylindrical
Finish/Coating:
AXT
interval quantity:
1
