Product Specifications

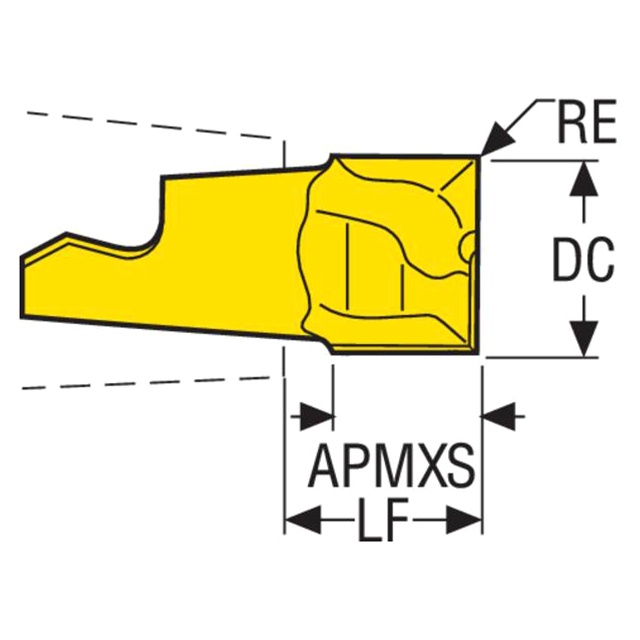

| Manufacturer Part Number | 74034248 |
| Cutting Diameter (mm) | 8.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 9.80mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 15.00mm |
| Cutting Edge Effective Length (mm) | 5.50mm |
| Functional Length (mm) | 6.80mm |
| Maximum Depth of Cut (mm) | 5.50mm |
| Corner Radius (mm) | 0.40mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Slotting Milling Tip Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
23/73"
Cutting Diameter (Decimal Inch):
0.3150"
Cutting Diameter (mm):
8.00mm
Maximum Depth of Cut (Inch):
21/97"
Maximum Depth of Cut (Decimal Inch):
0.2165"
Maximum Depth of Cut (mm):
5.50mm
interval quantity:
1
