Seco Tools 74068362 | MM10-10010-B90-MD04 10.00mm Diameter x 5.00mm Corner Radius x 90 Degree Cutting Edge Angle PVD Coated Carbide Profile Milling Tip Insert

$73.43
Brand:
Seco Tools
Material:
Carbide
Cutting Diameter (Inch):
37/94"
Cutting Diameter (Decimal Inch):
0.3937"
Cutting Diameter (mm):
10.00mm
Maximum Depth of Cut (Inch):
2/5"
Maximum Depth of Cut (Decimal Inch):
0.4016"
Maximum Depth of Cut (mm):
10.20mm
interval quantity:
1
SKU:
55076540
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 74068362 | MM10-10010-B90-MD04 10.00mm Diameter x 5.00mm Corner Radius x 90 Degree Cutting Edge Angle PVD Coated Carbide Profile Milling Tip Insert

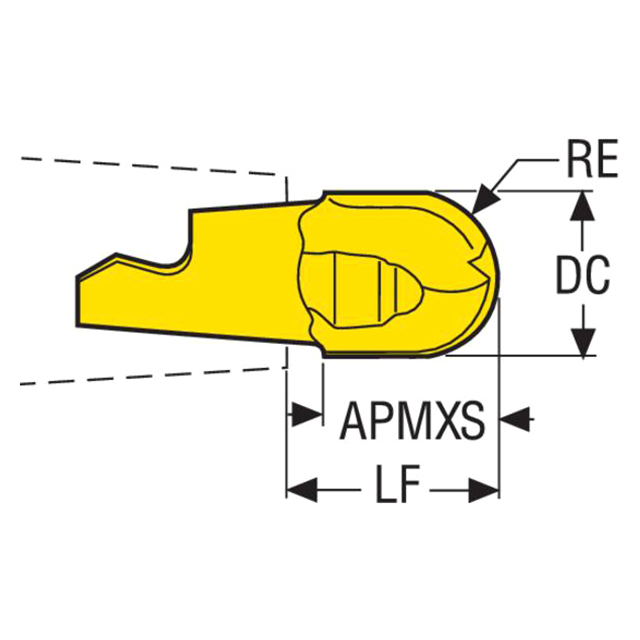

Product Specifications
Manufacturer Part Number74068362
Cutting Diameter (mm)10.00mm
Minimum Helical Interpolation Hole Diameter (mm)10.80mm
Maximum Helical Interpolation Hole Diameter (mm)18.80mm
Cutting Edge Effective Length (mm)10.23mm
Functional Length (mm)11.77mm
Maximum Depth of Cut (mm)10.20mm
Corner Radius (mm)5.00mm
Cutting Edge Count1
Tool Cutting Edge Angle (Degree)90 Degree
Tool Cutting Edge Angle In Feed Direction Side (Degree)90 Degree
Maximum Ramping Angle (Degree)15 Degree
Sphere Angle (Degree)180 Degree
MaterialCarbide
CoatingAlTiN
Product TypeProfile Milling Tip Insert
