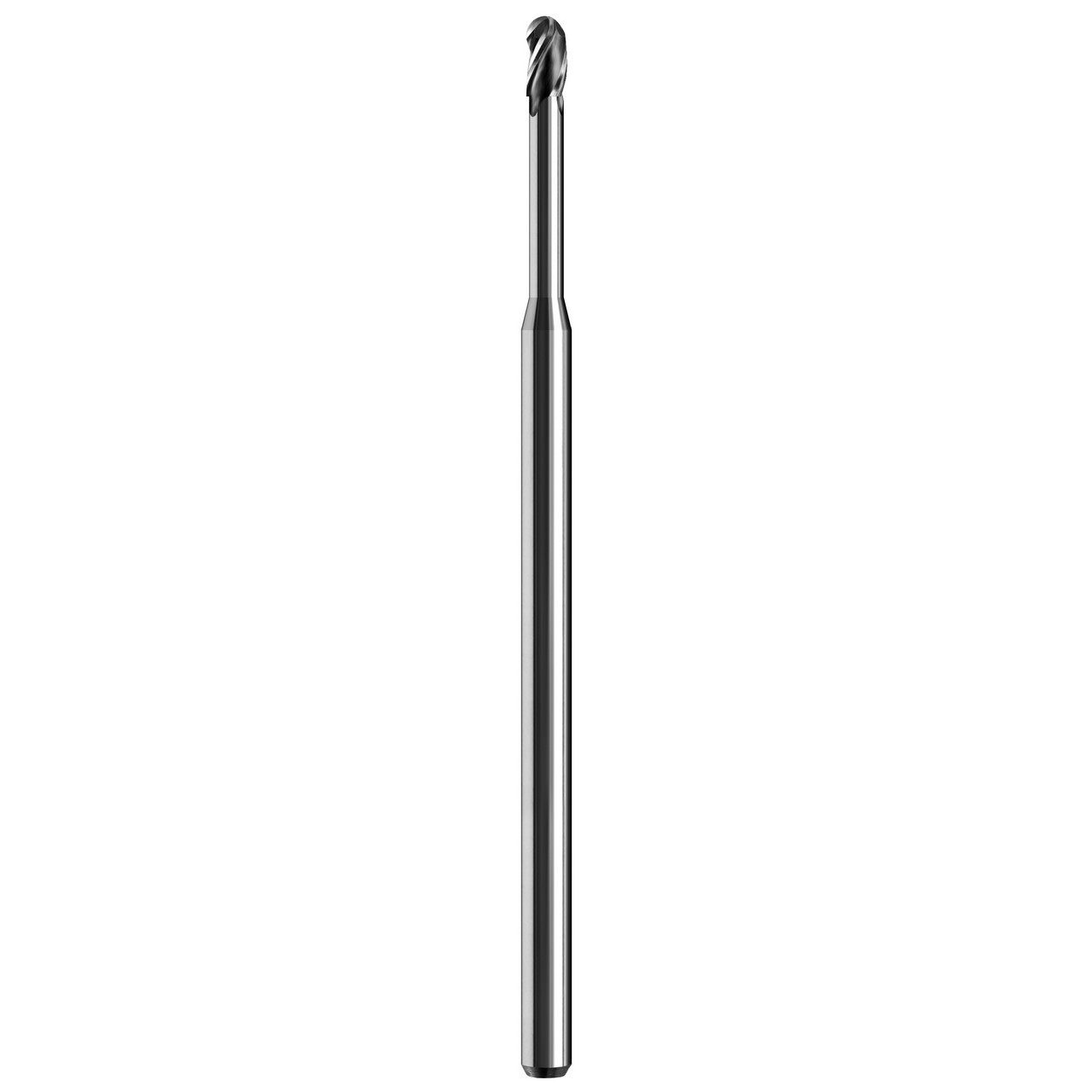

SGS 01631 | 0.090" Diameter x 0.125" Shank x 0.270" LOC x 2.500" OAL 3 Flute Uncoated Ball End Mill

$24.21
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
17/64"
Length of Cut (Decimal Inch):
0.2700"
Length of Cut (mm):
6.86mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
SKU:
25190031
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • Three flute design features improved chip space over four flutes and increased strength and feed capability over two flutes
  • Proprietary coating allows for superior chip flow, driving industry leading productivity and value, even at low spindle speeds
  • High performance carbide substrate designed specifically for Micro Tool applications
  • Broad portfolio, offering consistent lengths of cut, to ensure application demands are met
  • Advanced geometries that extend tool life, reduce chatter, cut cycle times, and improve part quality
  • All tools in stock to meet customer order requirements
  • All micro tools are manufactured in accordance with the KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (Inch)0.090"
Shank Diameter (Inch)0.125"
Length of Cut (Inch)0.270"
Overall Length (Inch)2.500"
Shank Length (Inch)1.420"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.270"
Reach (Inch)1.080"
Helix Angle30 Degree
CoatingUncoated
Number of Flutes3
