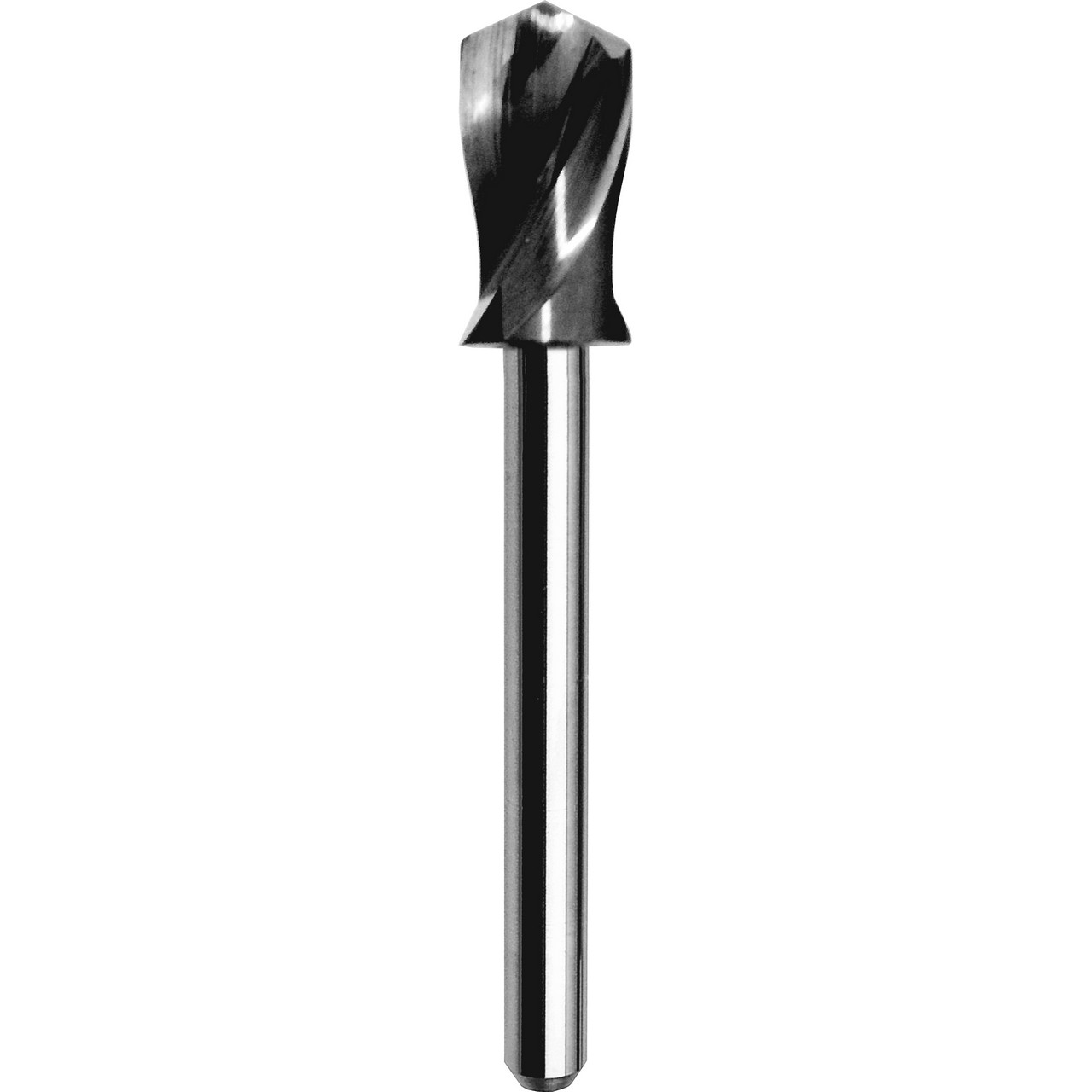

SGS 06162 | 15/64" Diameter x 1/8" Shank x 1/2" LOC x 1-1/2" OAL 2 Flute Uncoated Spotting Drill

$13.28
Brand:
SGS
Drill Point Angle:
130°
Finish/Coating:
UN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
SKU:
10227595
UPC:
691781061627
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features:

  • Fractional diameters ranging from 0.1285"- 0.2610"
  • Metric diameters ranging from 3,2 - 6,7mm
  • All items on 1/8" common shank to suit global application demands
  • 130 degree point angle
  • Optimal end geometry ideal for targeted non-ferrous materials
  • 4-faceted point geometry provides centering assistance upon entry
  • Mirror surface finish is applied to allow for smooth chip flow
  • Wide diameters offer ability to drill larger than average holes than is commonly possible in micro spindles

Product Specifications
Cutting Diameter (Inch)15/64"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)1/2"
Overall Length (Inch)1-1/2"
Shank Length (Inch)1"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.5"
Helix Angle30 Degree
Point Angle130 Degree
CoatingUncoated
Number of Flutes2
