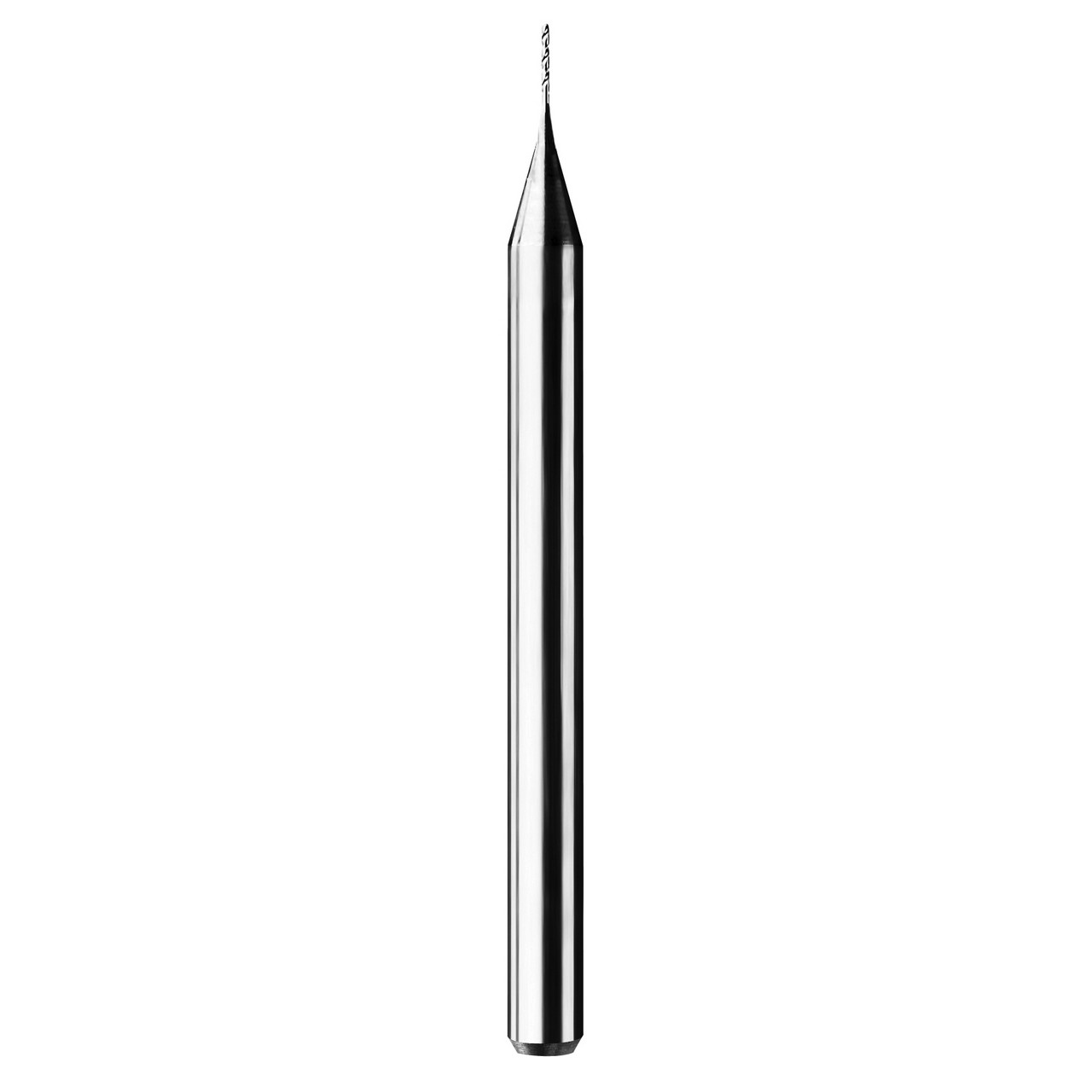

SGS 07640 | 2.3mm Diameter x 3.0mm Shank x 10.2mm LOC x 38.0mm OAL 2 Flute AlTiN Coated Micro Drill Bit

$11.09 $7.21
(You save $3.88)
Brand:
SGS
Drill Point Angle:
130 Degree
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.4961"
Overall Length (mm):
38mm
Finish/Coating:
TA
interval quantity:
1
SKU:
10228253
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features:

  • 4-facet point design stabilizes on entry for superior hole size control and tool life (>.08mm). 2-facet point on 0,08 and smaller
  • Mirror surface finishes improve chip flow as hole depth increases
  • Ti-Namite A coating and uncoated options for the ultimate performance in a variety of ferrous and non-ferrous workpiece materials
  • Application specific sub-micron grain carbide designed specifically for microtool applications
  • Manufactured in accordance with KSPT ISO certified quality procedures

Product Specifications
Cutting Diameter (mm)2.3mm
Shank Diameter (mm)3.0mm
Length of Cut (mm)10.2mm
Overall Length (mm)38.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle33 Degree
Point Angle130 Degree
CoatingAlTiN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
