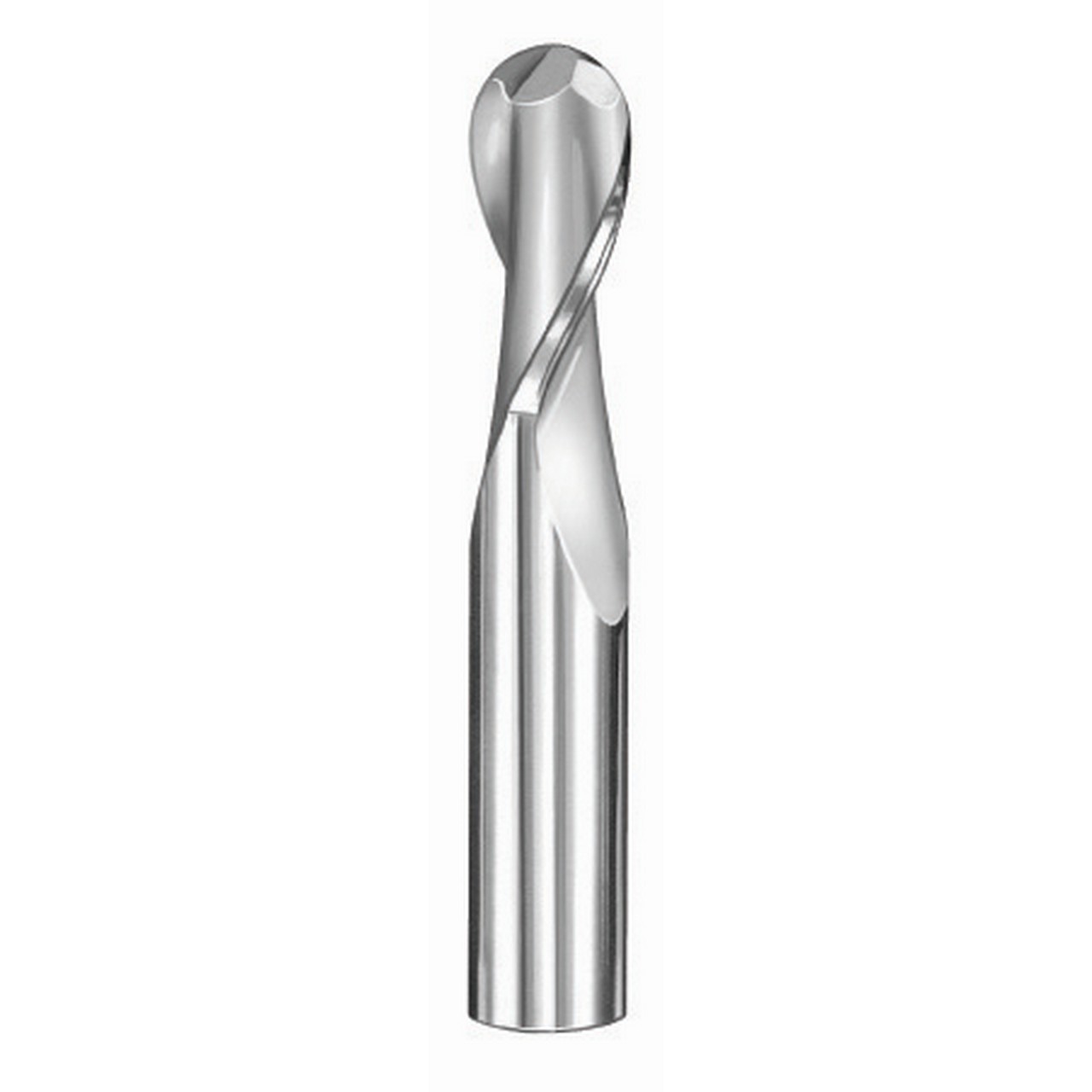

SGS 30324 | 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 2 Flute Uncoated Ball End Mill

$13.65
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
SKU:
25194171
UPC:
691781303246
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/16"
Shank Diameter (Inch)3/16"
Length of Cut (Inch)5/8"
Overall Length (Inch)2"
Shank Length (Inch)1.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingUncoated
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
