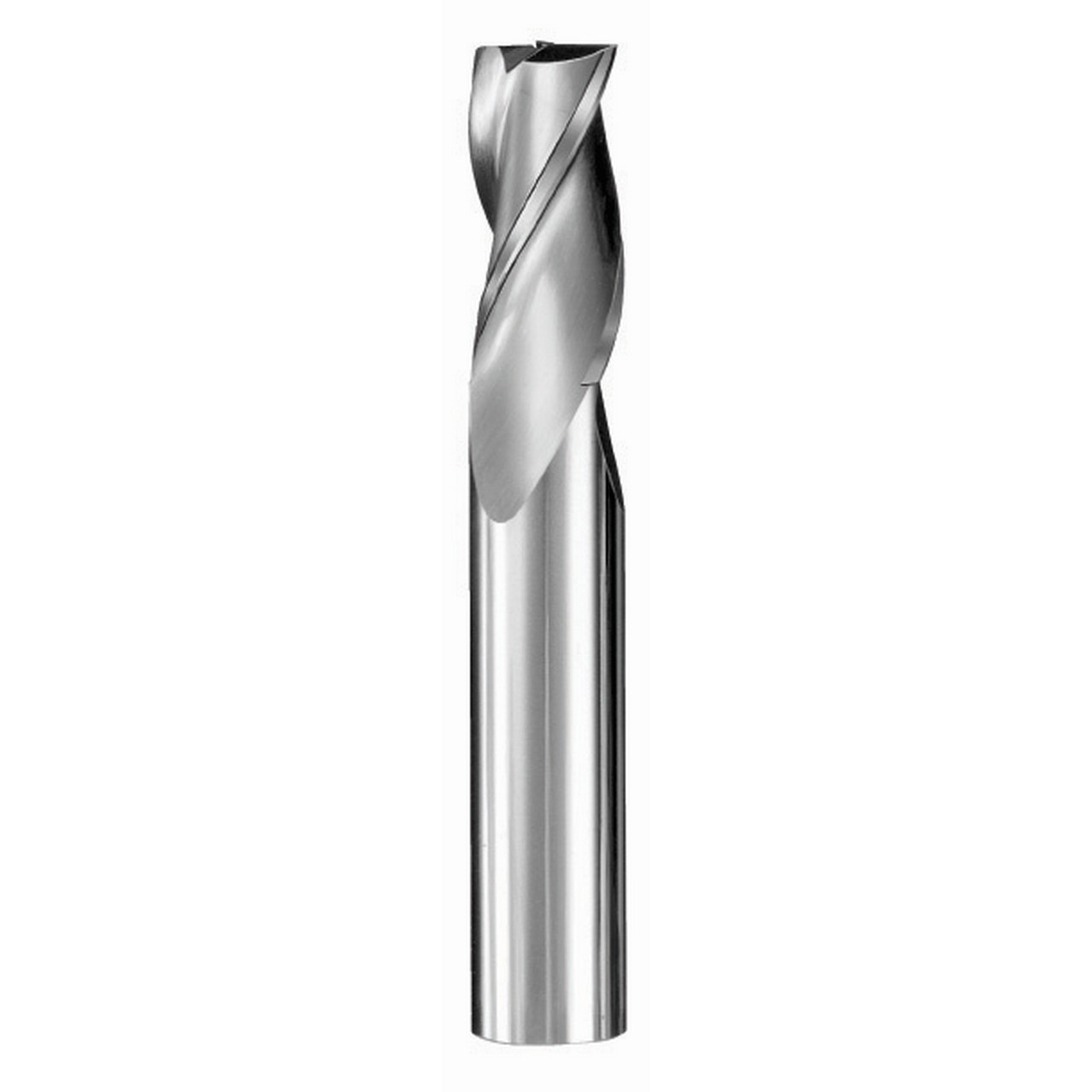

SGS 30525 | 13/64" Diameter x 1/4" Shank x 5/8" LOC x 2-1/2" OAL 3 Flute Uncoated Square End Mill

$15.57
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
UN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25194332
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)13/64"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)5/8"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.875"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
UN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
