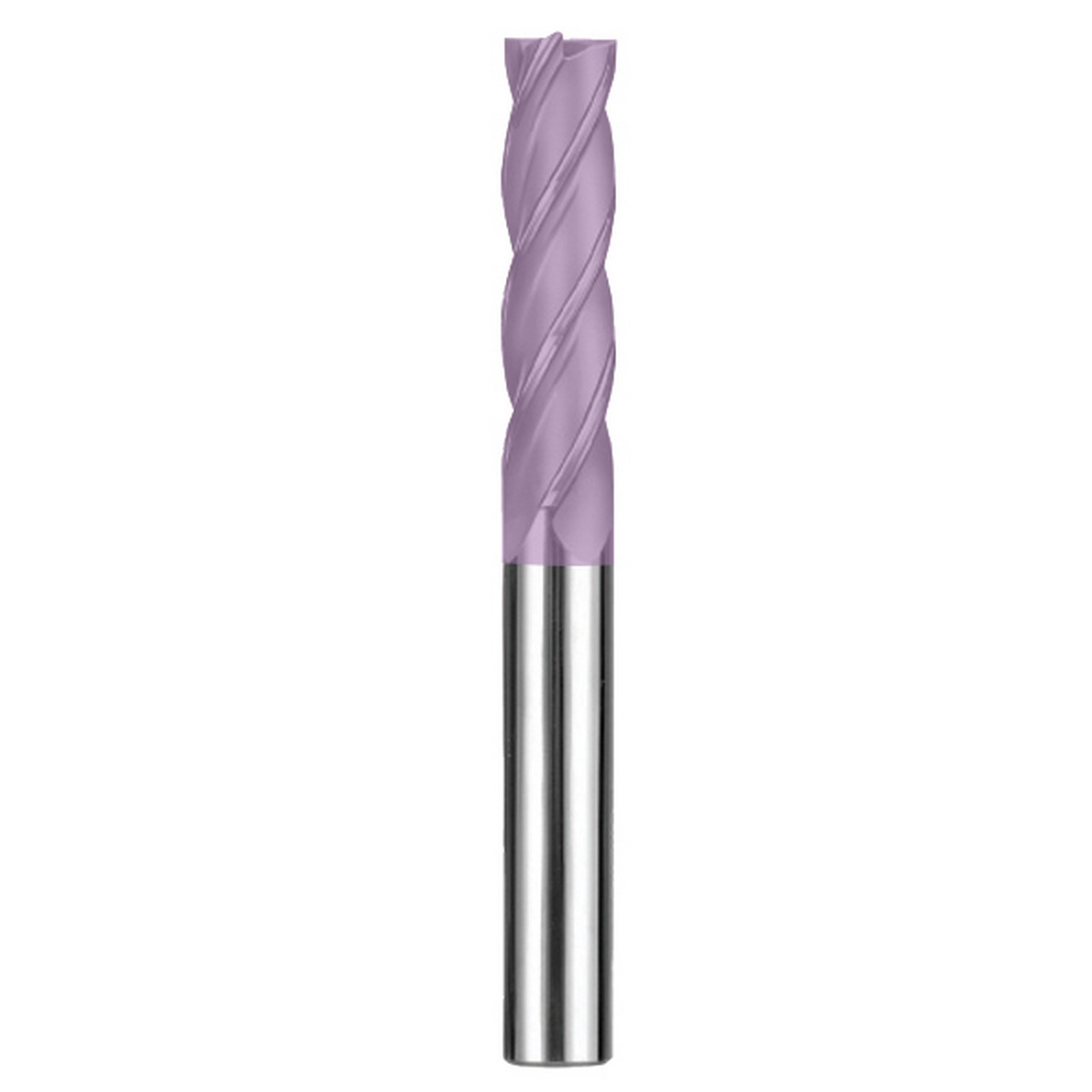

SGS 31739 | 1/4" Diameter x 1/4" Shank x 1-1/8" LOC x 3" OAL 4 Flute TiCN Coated Square End Mill

$22.02
Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TC
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25194953
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)1-1/8"
Overall Length (Inch)3"
Shank Length (Inch)1.875"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingTiCN
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Finish/Coating:
TC
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
