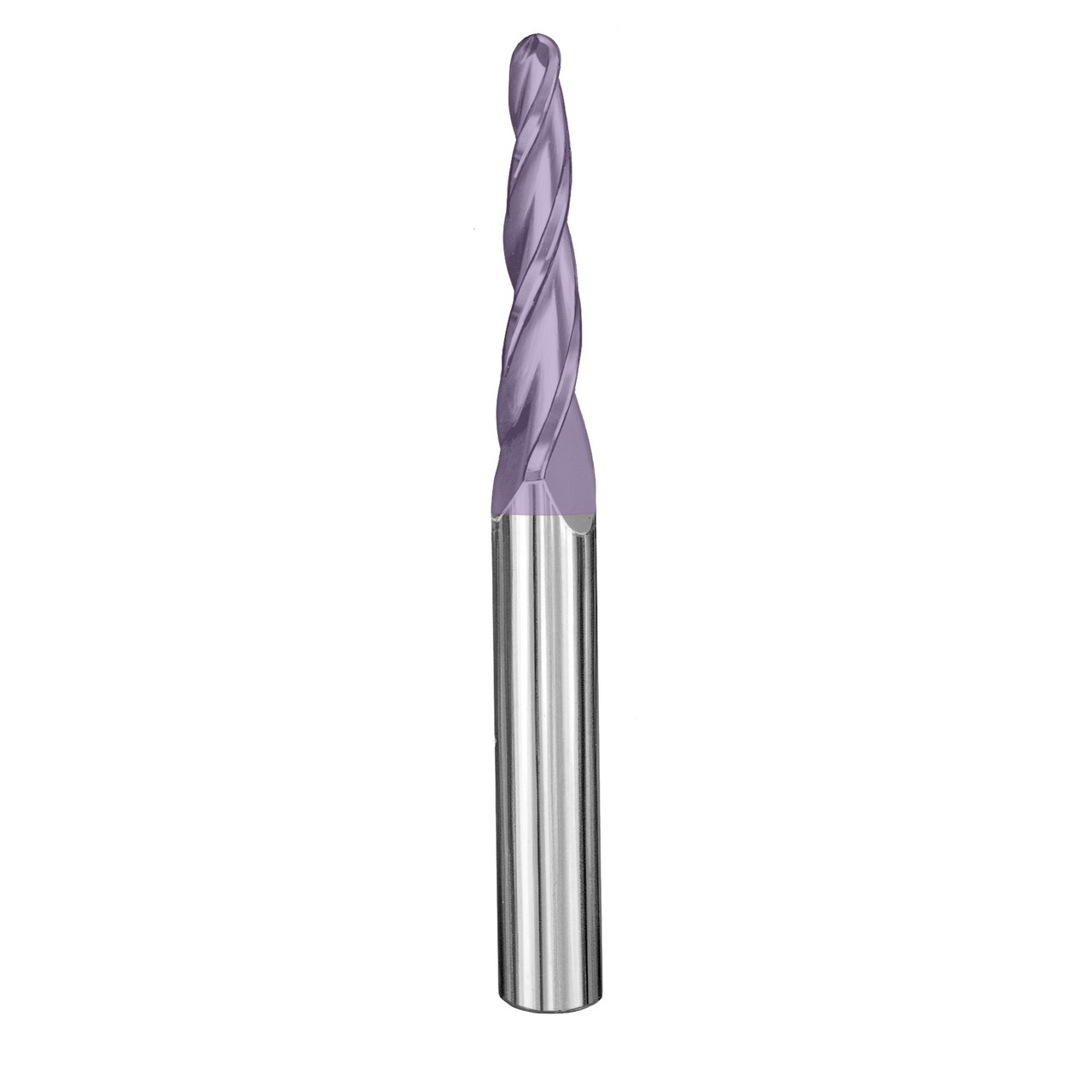

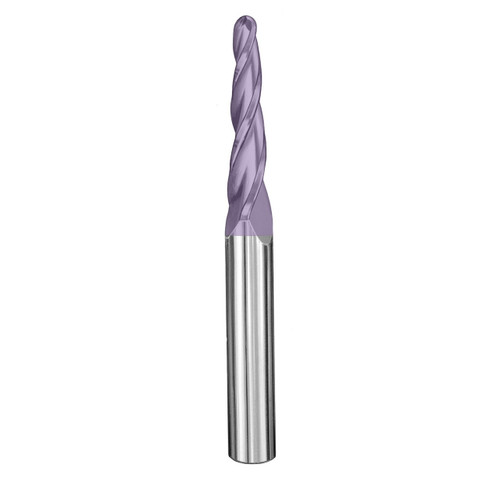

Product Specifications
| Cutting Diameter (Inch) | 1/8" |
| Shank Diameter (Inch) | 1/2" |
| Length of Cut (Inch) | 1/2" |
| Overall Length (Inch) | 4" |
| Shank Length (Inch) | 3" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Helix Angle | 28 Degree |
| Angle | 10 Degree |
| Coating | TiCN |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Finish/Coating:
TC
Cutting Direction:
RHC
Helix Angle (Degree):
28 Degree
