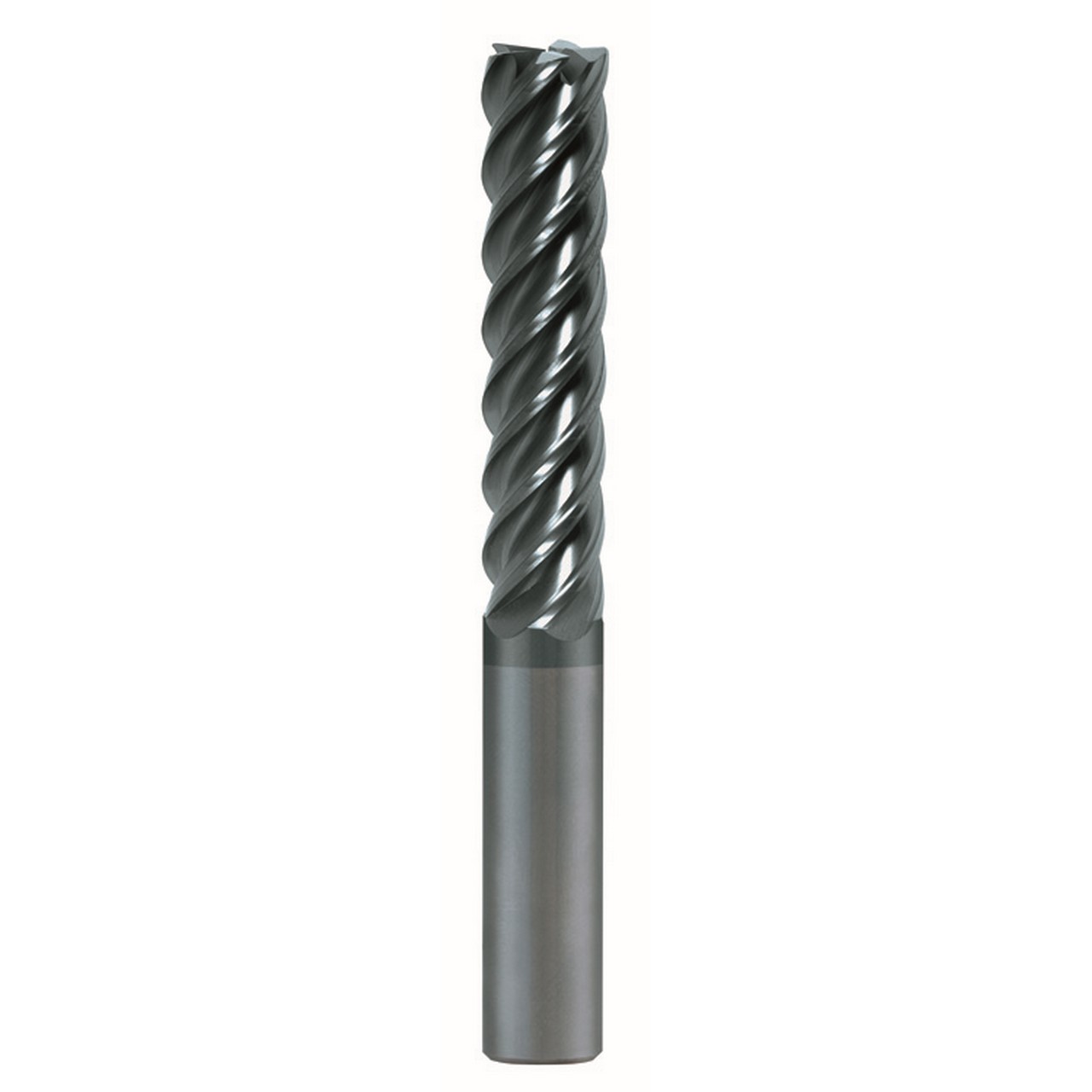

SGS 32626 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 5 Flute AlTiN Coated Corner Radius End Mill

$91.50 $54.90
(You save $36.60)
Brand:
SGS
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
interval quantity:
1
SKU:
25195495
UPC:
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/8"
Shank Diameter (Inch)3/8"
Length of Cut (Inch)1"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.5"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.015"
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0150"
Corner Radius (mm):
0.38mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
interval quantity:
1
