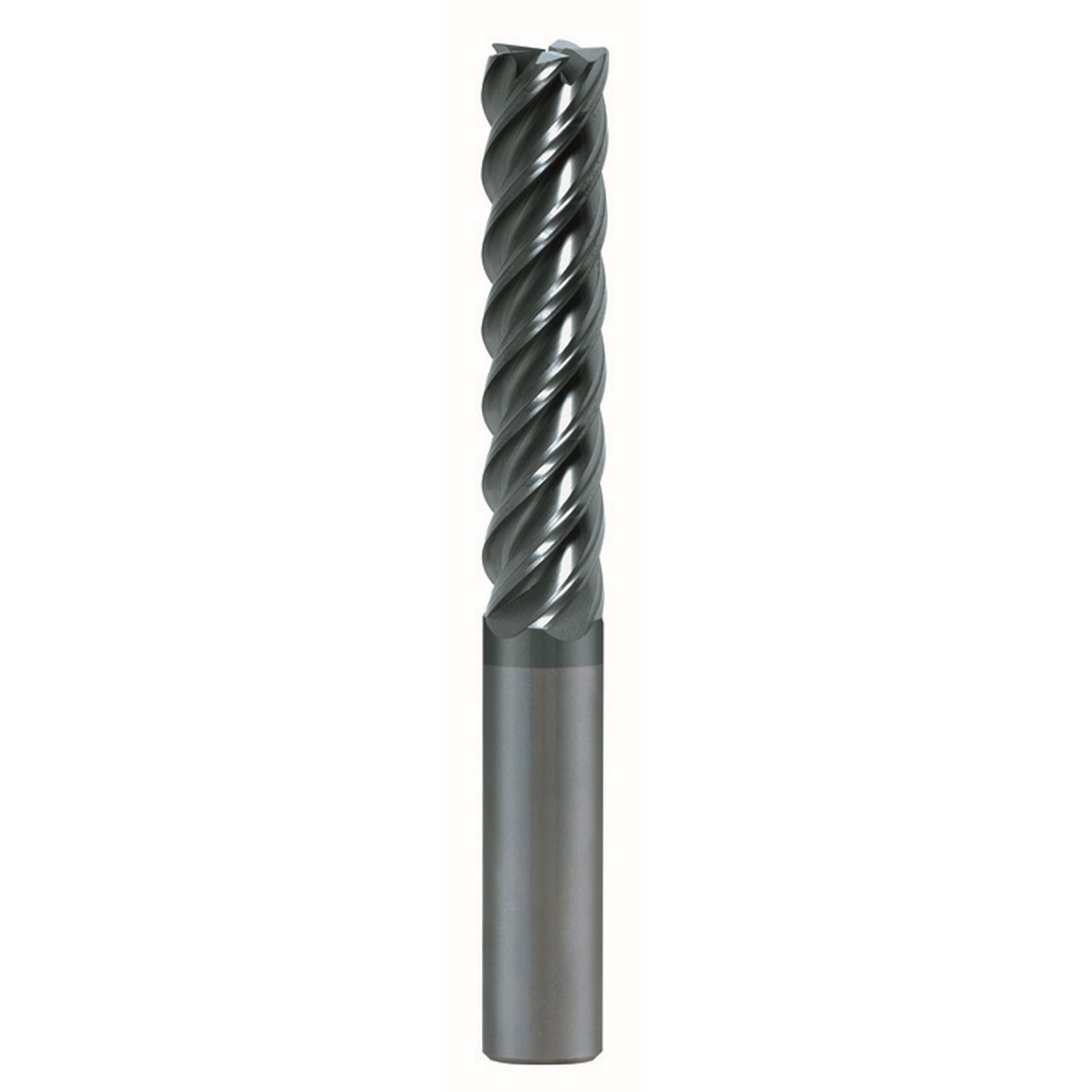

SGS 32666 | 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 3-1/2" OAL 5 Flute AlTiN Coated Square End Mill

$141.36
Brand:
SGS
Number of Flutes:
5
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
SKU:
25195511
UPC:
691781326665
Weight:
0.52 LBS
Shipping:
Free Shipping

Features:

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)1-5/8"
Overall Length (Inch)3-1/2"
Shank Length (Inch)1.875"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
