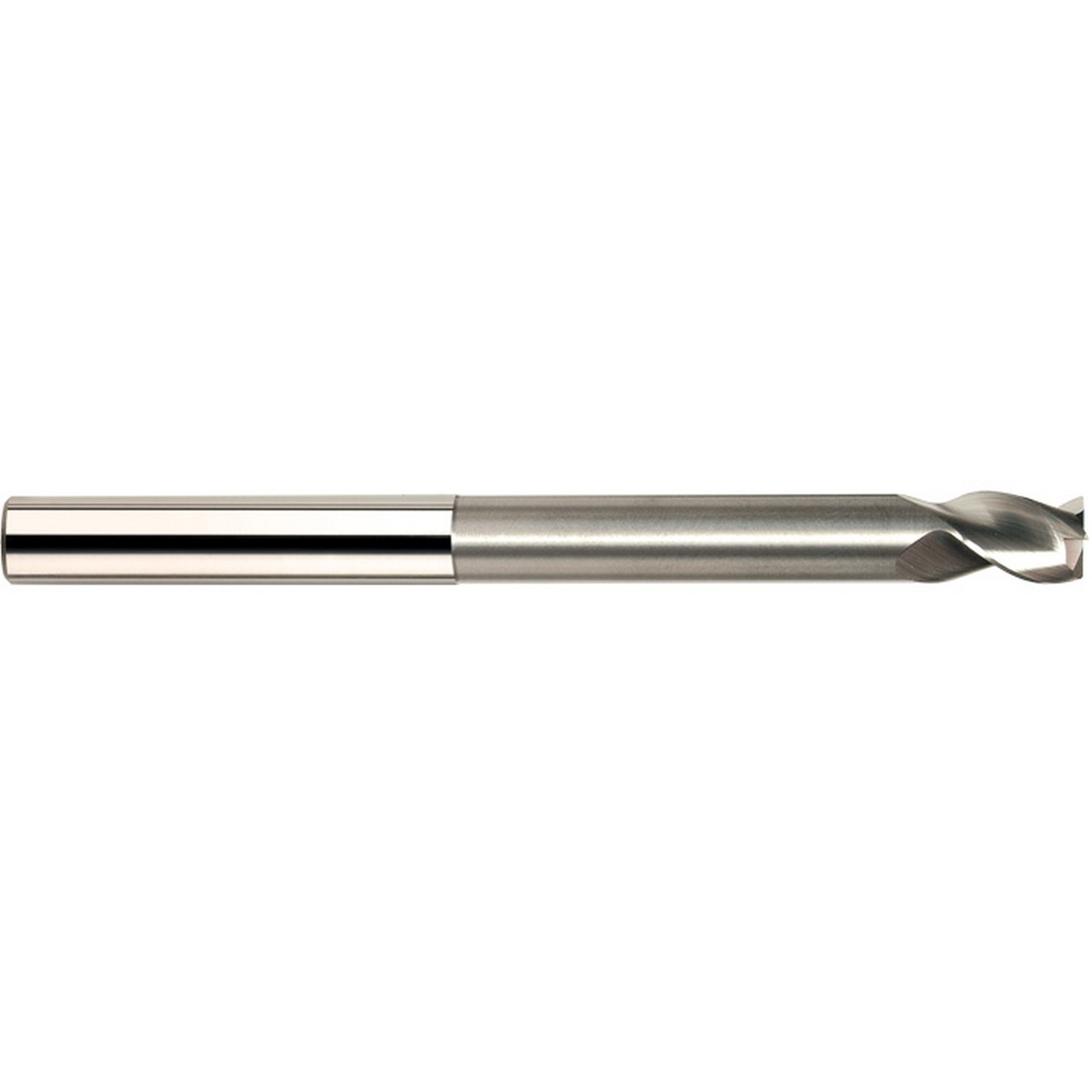

SGS 32704 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 4" OAL 3 Flute Uncoated Square End Mill

$32.61
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Finish/Coating:
UN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25195543
Weight:
0.10 LBS
Shipping:
Calculated at Checkout

Features:

  • Circular land allows for increased control at various speed and feed rates and reduces chatter
  • Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
  • Open fluting for deep slotting and profiling
  • Necked design with blended diameter transitions provide clearance to reach
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/8"
Overall Length (Inch)4"
Shank Length (Inch)3.625"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)2.125"
Helix Angle38 Degree
CoatingUncoated
Number of Flutes3
