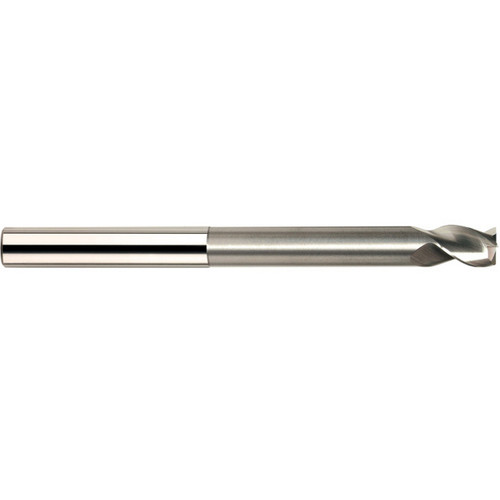

SGS 32705 | 5/16" Diameter x 5/16" Shank x 7/16" LOC x 4" OAL 3 Flute Uncoated Square End Mill

$40.67
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4375"
Length of Cut (mm):
11.11mm
Finish/Coating:
UN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
SKU:
25195544
Weight:
0.16 LBS
Shipping:
Calculated at Checkout

Features:

  • Circular land allows for increased control at various speed and feed rates and reduces chatter
  • Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
  • Open fluting for deep slotting and profiling
  • Necked design with blended diameter transitions provide clearance to reach
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)7/16"
Overall Length (Inch)4"
Shank Length (Inch)3.5625"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.125"
Helix Angle38 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
