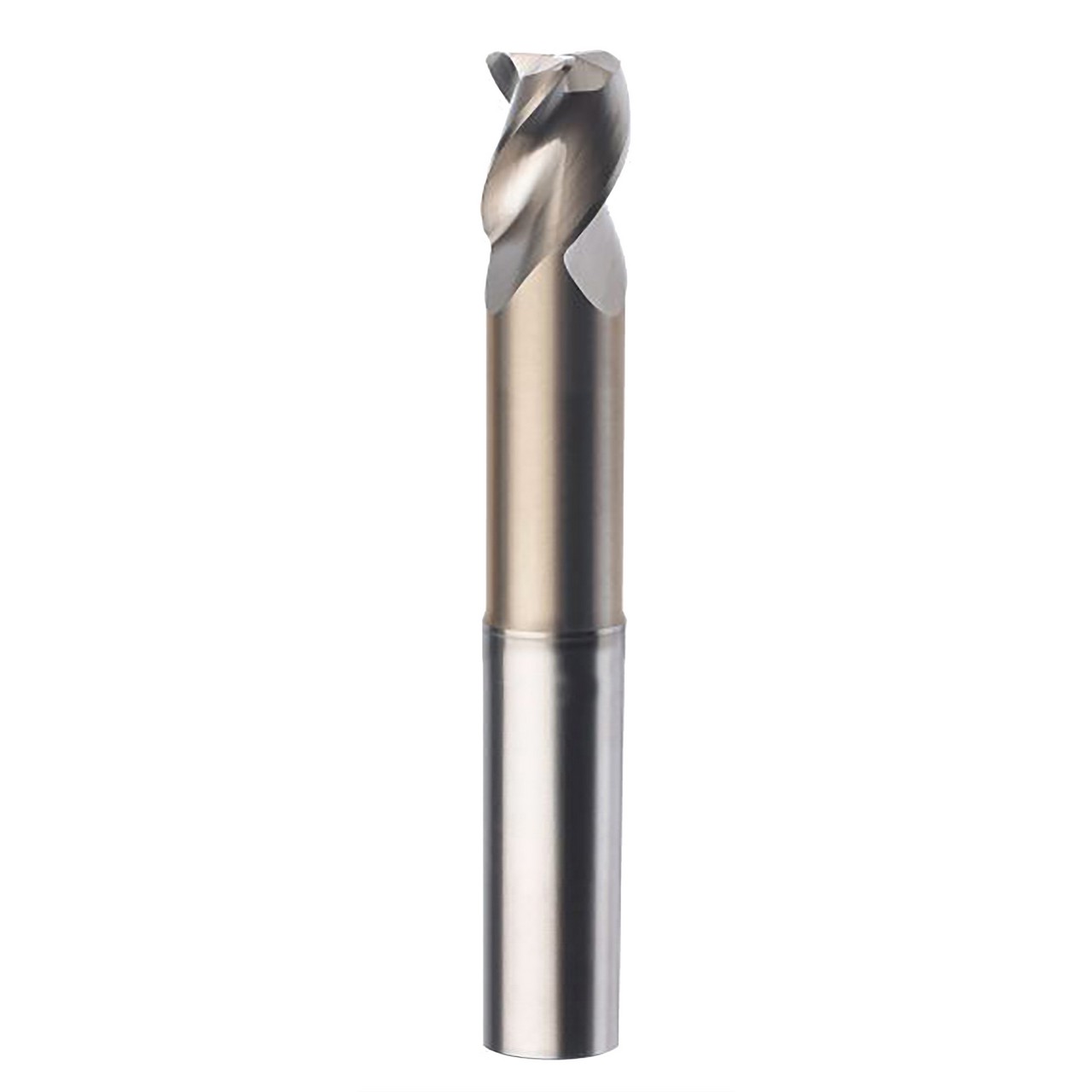

SGS 32836 | 1/2" Diameter x 1/2" Shank x 5/8" LOC x 6" OAL 3 Flute TiB2 Coated Corner Radius End Mill

$110.76
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TB
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Cutting Direction:
RHC
SKU:
25195662
Weight:
0.56 LBS
Shipping:
Free Shipping

Product Specifications
Cutting Diameter (Inch)1/2"
Shank Diameter (Inch)1/2"
Length of Cut (Inch)5/8"
Overall Length (Inch)6"
Shank Length (Inch)5.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)2.125"
Corner Radius (Inch)0.06"
Helix Angle38 Degree
CoatingTiB2
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TB
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Cutting Direction:
RHC
