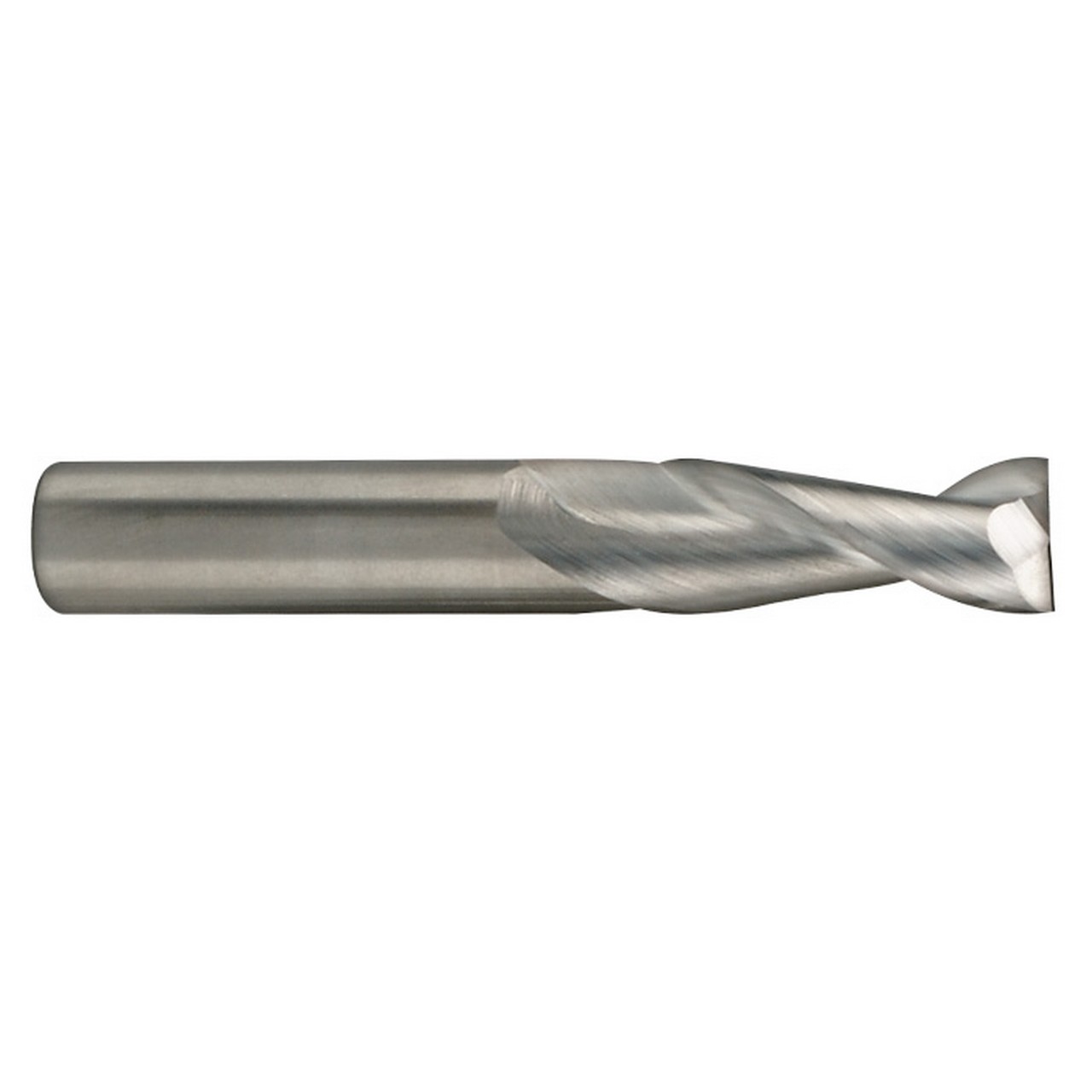

SGS 34668 | 1.000" Diameter x 1.000" Shank x 2.000" LOC x 4.500" OAL 2 Flute TiB2 Coated Square End Mill

$298.10
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Finish/Coating:
TB
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Helix Angle:
35 Degree
Cutting Direction:
RHC
SKU:
25196055
UPC:
691781346687
Weight:
0.75 LBS
Shipping:
Free Shipping

Features:

  • Circular land reduces edge aggressiveness for varied speed and feed rates
  • 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
  • Excellent balance at high speeds and aggressive plunging capability
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)1.000"
Shank Diameter (Inch)1.000"
Length of Cut (Inch)2.000"
Overall Length (Inch)4.500"
Shank Length (Inch)2.500"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle35 Degree
CoatingTiB2
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2.0000"
Length of Cut (mm):
50.8mm
Finish/Coating:
TB
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Helix Angle:
35 Degree
Cutting Direction:
RHC
