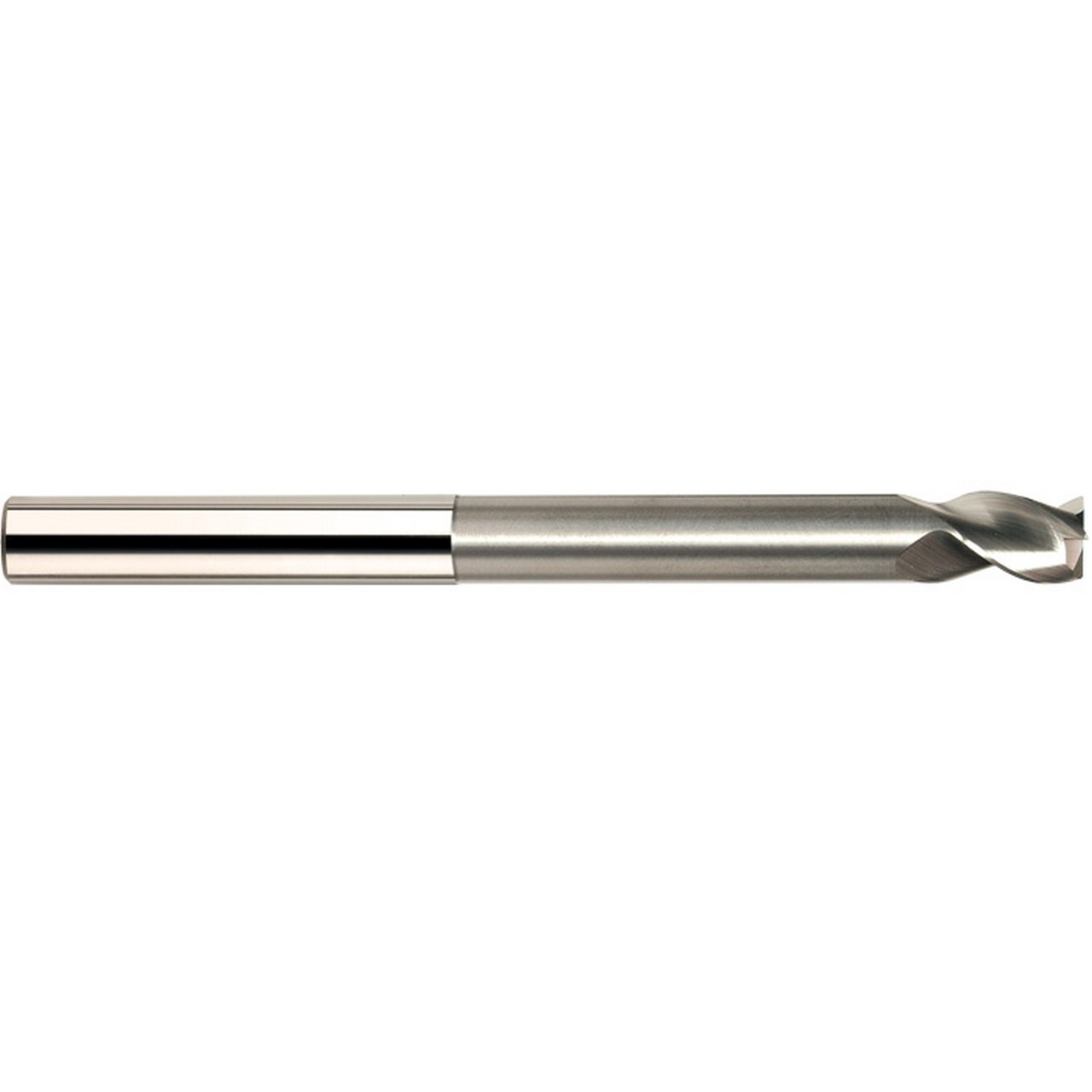

Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
- Open fluting for deep slotting and profiling
- Necked design with blended diameter transitions provide clearance to reach
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (Inch) | 3/4" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 6" |
| Shank Length (Inch) | 1.625" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Reach (Inch) | 4.375" |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
TB
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.4mm
Helix Angle:
38 Degree
Cutting Direction:
RHC
