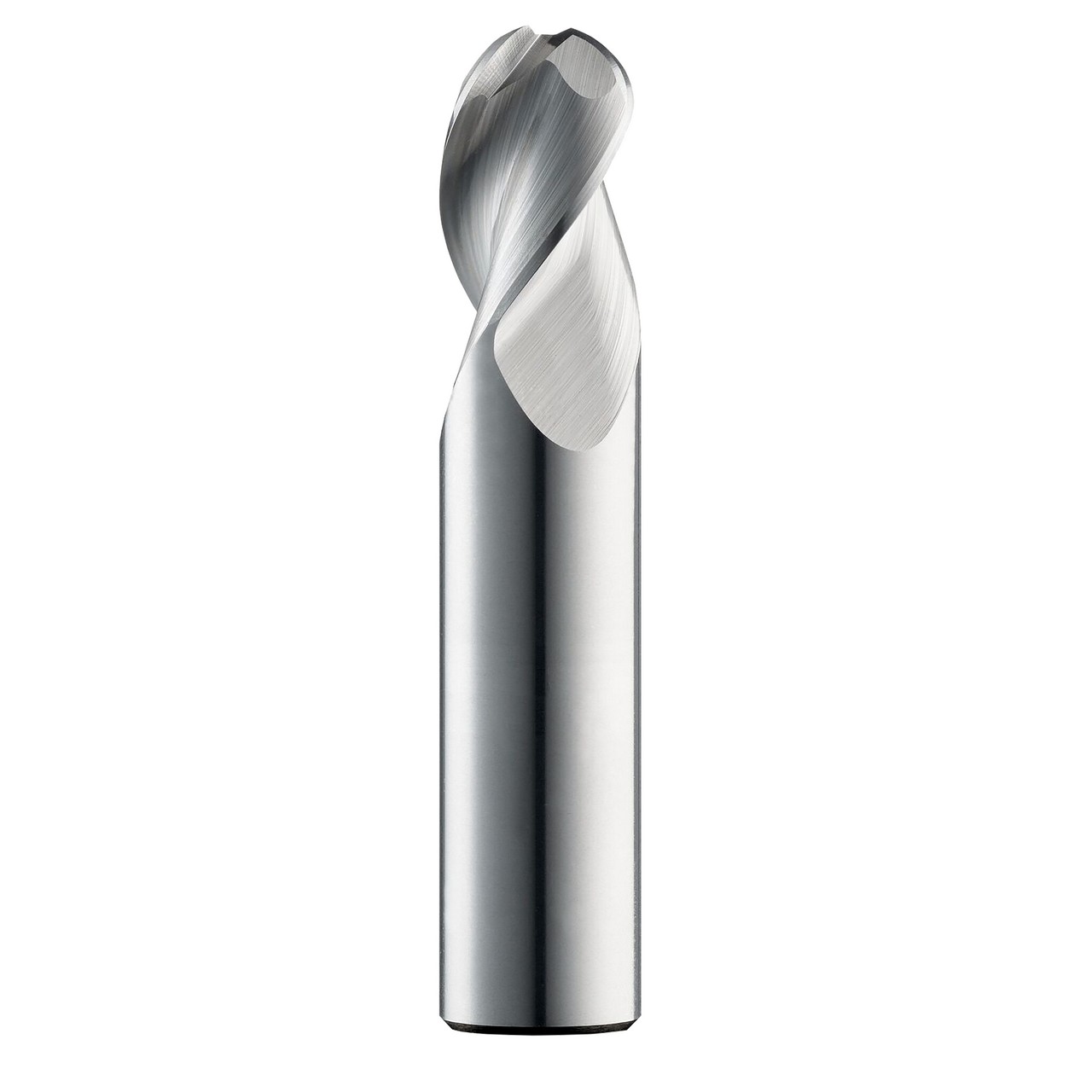

SGS 34916 | 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL 3 Flute Uncoated Ball End Mill

$17.93
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
SKU:
25196216
UPC:
691781349169
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Features:

  • Circular land allows for increased control at various speed and feed rates and reduces chatter
  • Open fluting for deep slotting and profiling
  • Ball nose design ideal for finishing operations in complex workpieces
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)3/8"
Overall Length (Inch)2"
Shank Length (Inch)1.625"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle38 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
UN
Cutting Direction:
RHC
Helix Angle (Degree):
38 Degree
