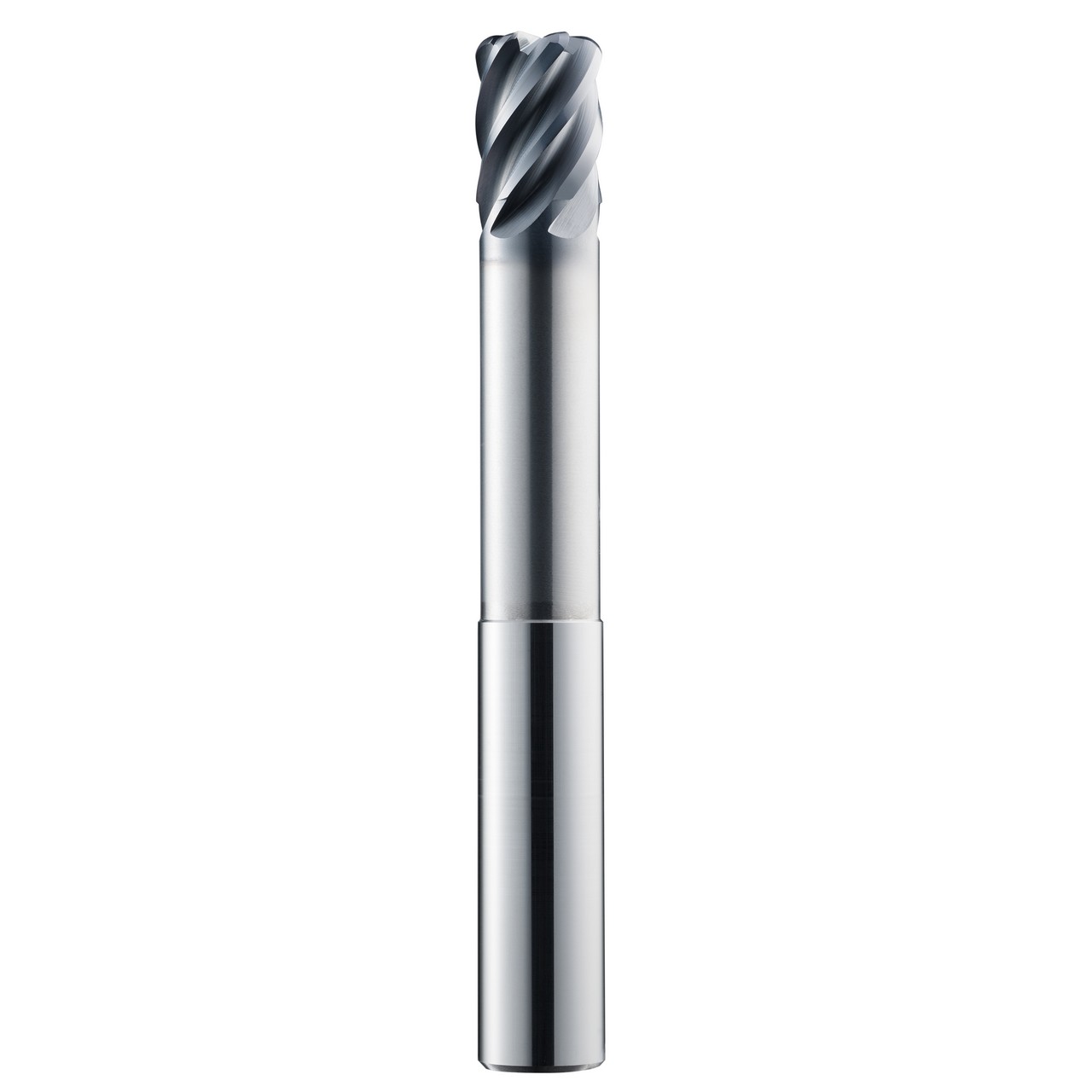

SGS 35134 | 5/8" Diameter x 5/8" Shank x 3/4" LOC x 5" OAL 6 Flute TX Coated Corner Radius End Mill

$241.61
Brand:
SGS
Number of Flutes:
6
End Type:
Corner Radius
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0900"
Corner Radius (mm):
2.29mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
Cutting Direction:
RHC
SKU:
25196318
Weight:
0.78 LBS
Shipping:
Free Shipping

Features:

  • Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
  • Eccentric relief provides superior strength and smoother surface finish
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)3/4"
Overall Length (Inch)5"
Shank Length (Inch)2.5"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)2.5"
Corner Radius (Inch)0.09"
Helix Angle41 Degree
CoatingTX
Number of Flutes6
