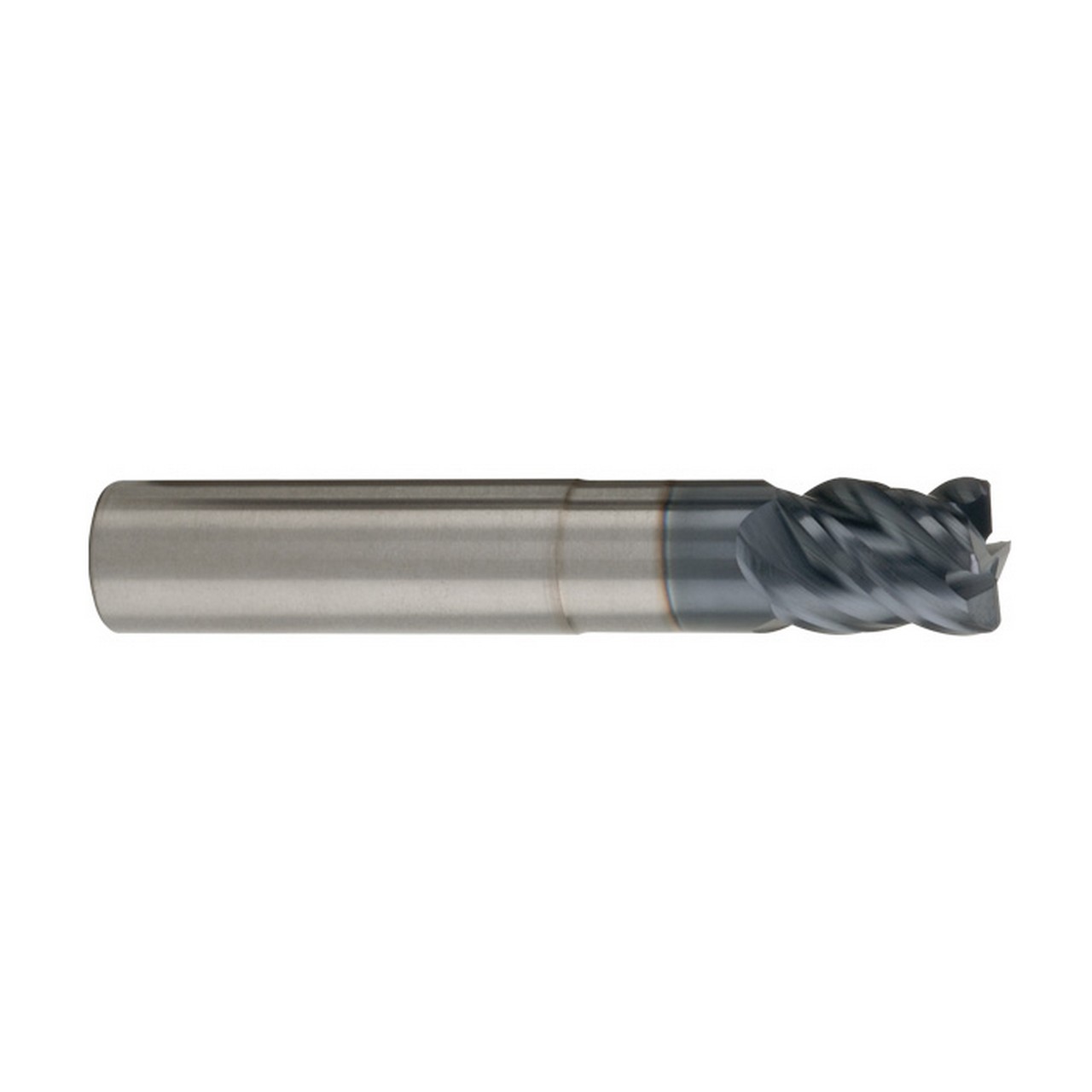

SGS 36782 | 1/4" Diameter x 1/4" Shank x 9/32" LOC x 2-1/2" OAL 4 Flute TX Coated Corner Radius End Mill

$33.28
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
9/32"
Length of Cut (Decimal Inch):
0.2810"
Length of Cut (mm):
7.14mm
Finish/Coating:
TX
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25196894
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/4"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)9/32"
Overall Length (Inch)2-1/2"
Shank Length (Inch)2"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)0.76"
Corner Radius (Inch)0.02"
Helix Angle42-45 Degree
CoatingTX
Number of Flutes4
