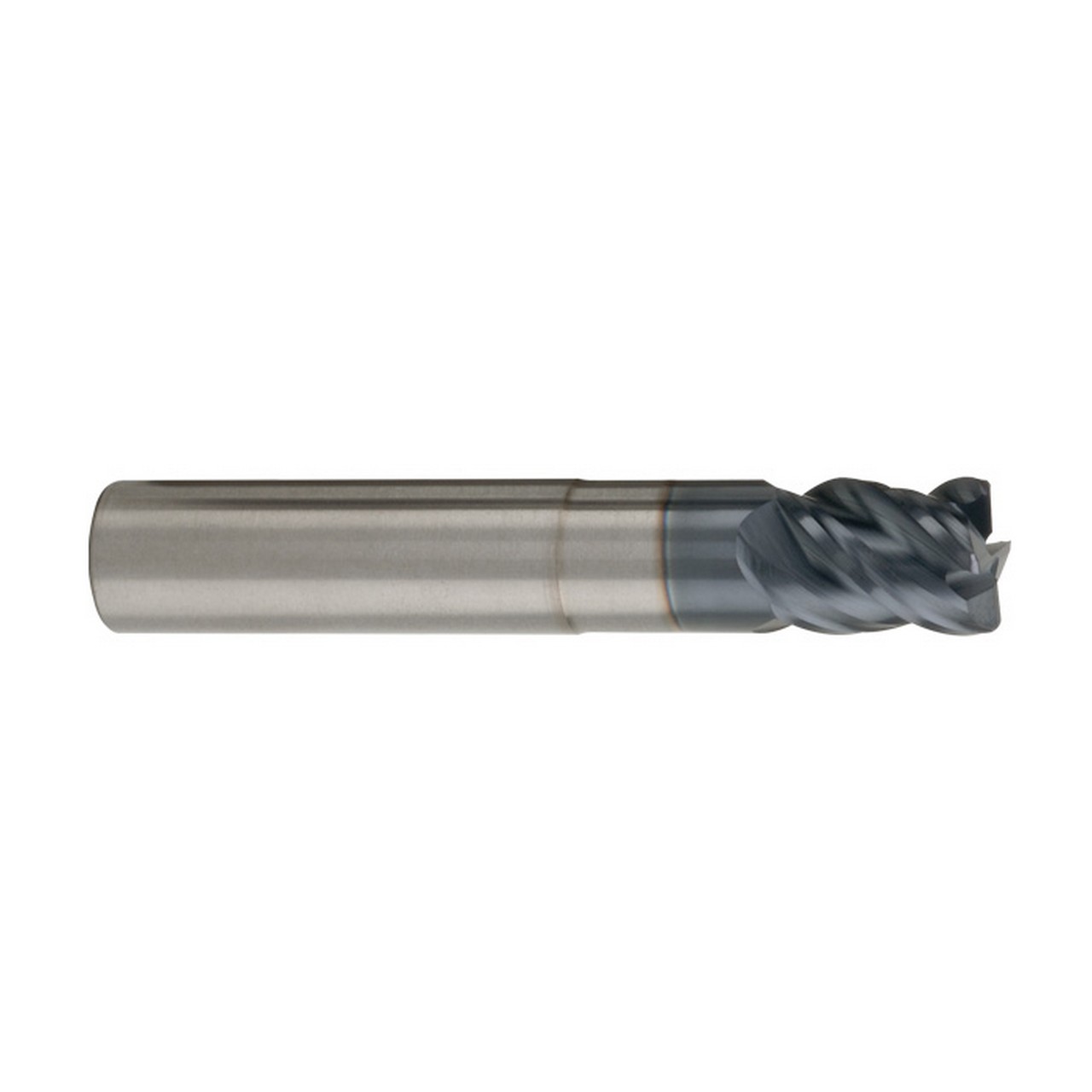

SGS 36784 | 3/8" Diameter x 3/8" Shank x 15/32" LOC x 2-1/2" OAL 4 Flute TX Coated Corner Radius End Mill

$53.87
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
15/32"
Length of Cut (Decimal Inch):
0.4680"
Length of Cut (mm):
11.89mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25196896
Weight:
0.14 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/8"
Shank Diameter (Inch)3/8"
Length of Cut (Inch)15/32"
Overall Length (Inch)2-1/2"
Shank Length (Inch)2.0312"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.01"
Corner Radius (Inch)0.04"
Helix Angle42-45 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
15/32"
Length of Cut (Decimal Inch):
0.4680"
Length of Cut (mm):
11.89mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
