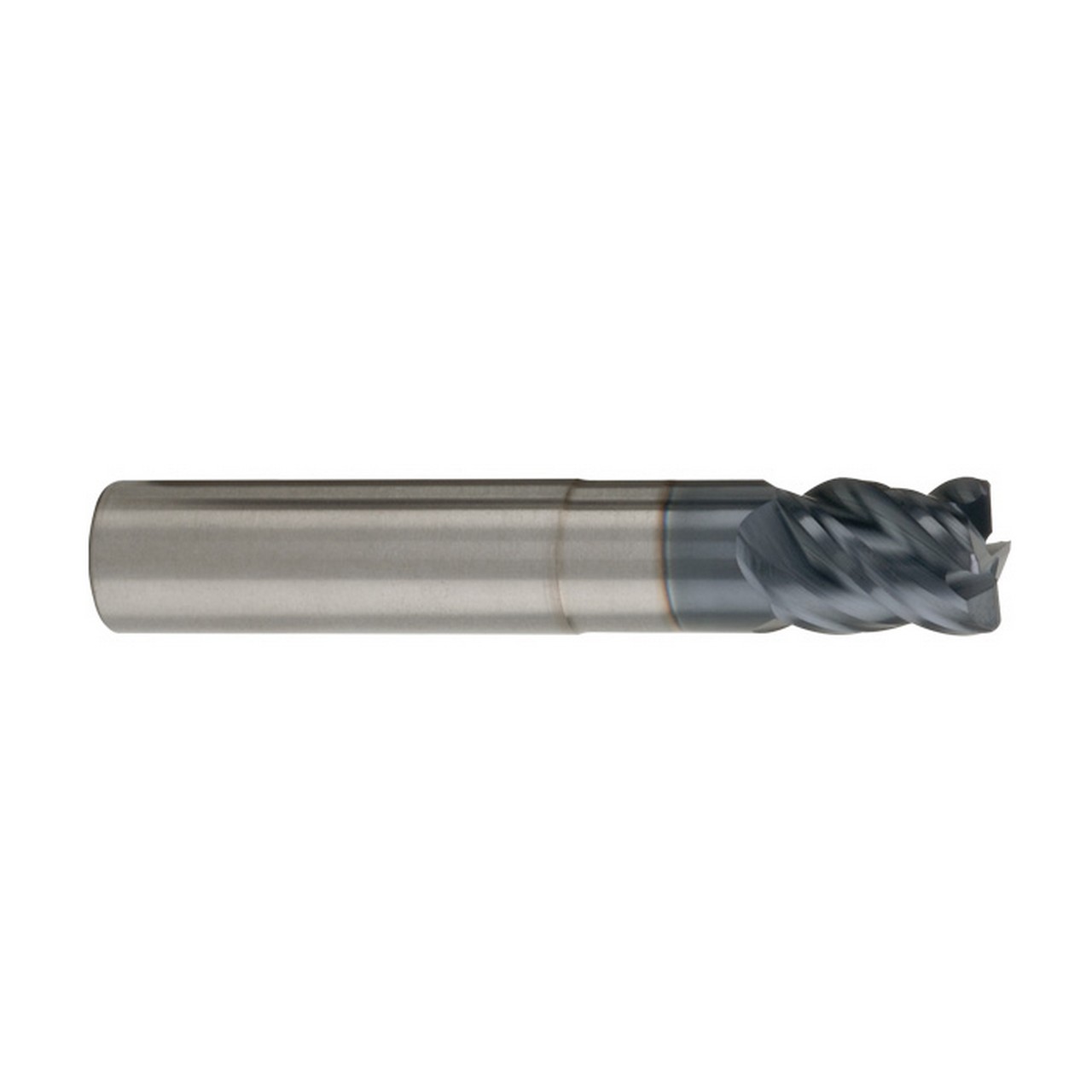

SGS 36791 | 3/4" Diameter x 3/4" Shank x 15/16" LOC x 4" OAL 4 Flute TX Coated Corner Radius End Mill

$234.53
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
15/16"
Length of Cut (Decimal Inch):
0.9370"
Length of Cut (mm):
23.8mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
SKU:
25196903
Weight:
0.90 LBS
Shipping:
Free Shipping

Product Specifications
Cutting Diameter (Inch)3/4"
Shank Diameter (Inch)3/4"
Length of Cut (Inch)15/16"
Overall Length (Inch)4"
Shank Length (Inch)2.5"
Cut of DirectionRight Hand
Flute TypeSpiral
Reach (Inch)1.76"
Corner Radius (Inch)0.06"
Helix Angle42-45 Degree
CoatingTX
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
15/16"
Length of Cut (Decimal Inch):
0.9370"
Length of Cut (mm):
23.8mm
Finish/Coating:
TX
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
Cutting Direction:
RHC
