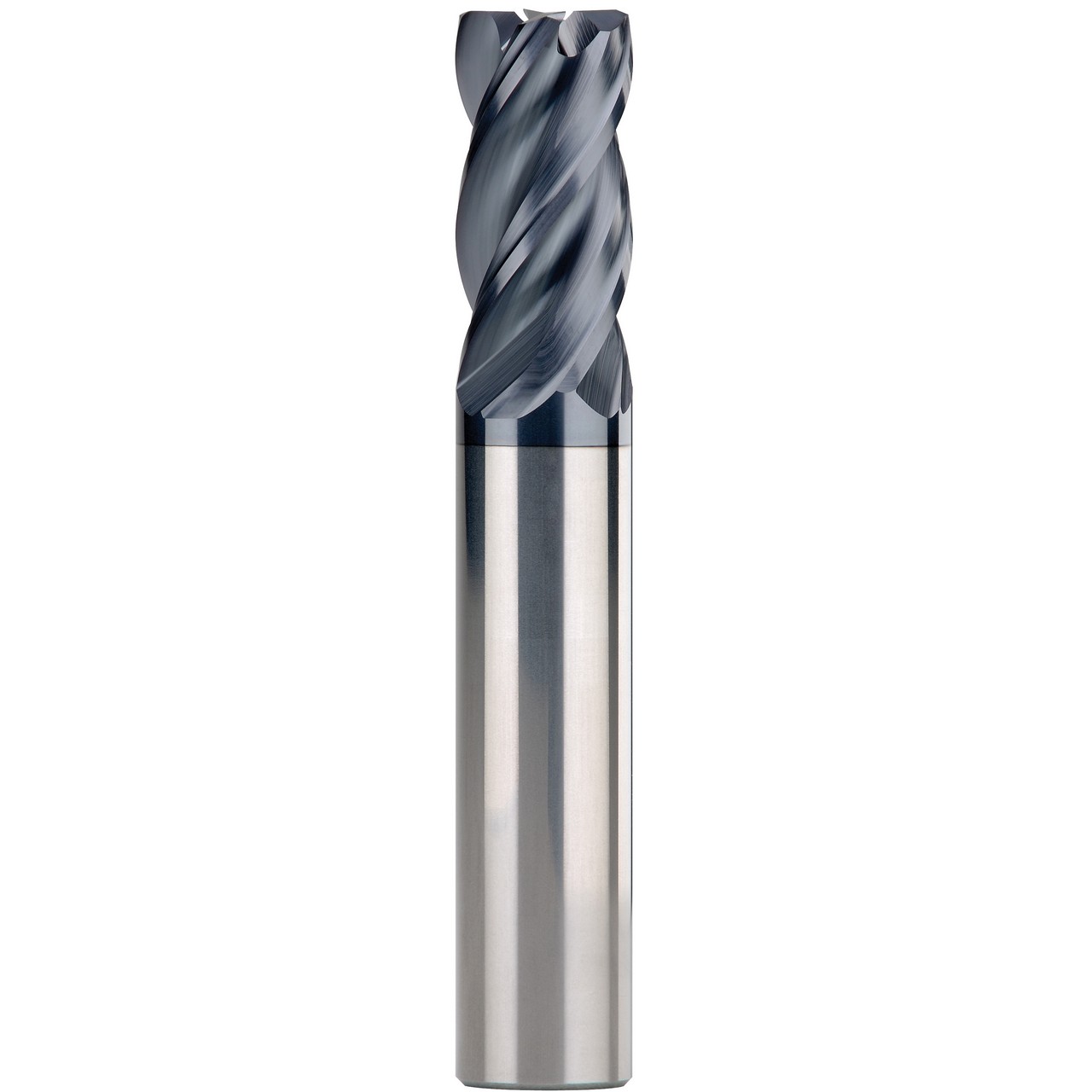

SGS 36861 | 5/8" Diameter x 5/8" Shank x 1-1/4" LOC x 3-1/2" OAL 4 Flute TX Coated Corner Radius End Mill

$145.92
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.02mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Finish/Coating:
TX
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Cutting Direction:
RHC
SKU:
25196948
UPC:
691781368610
Weight:
0.54 LBS
Shipping:
Free Shipping

Features:

  • Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
  • Unequal helix design changes the cutting angle to improve harmonics
  • Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
  • Long reach design allows for deeper and faster cuts
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)5/8"
Shank Diameter (Inch)5/8"
Length of Cut (Inch)1-1/4"
Overall Length (Inch)3-1/2"
Shank Length (Inch)2.25"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.04"
Helix Angle35-38 Degree
CoatingTX
Number of Flutes4
