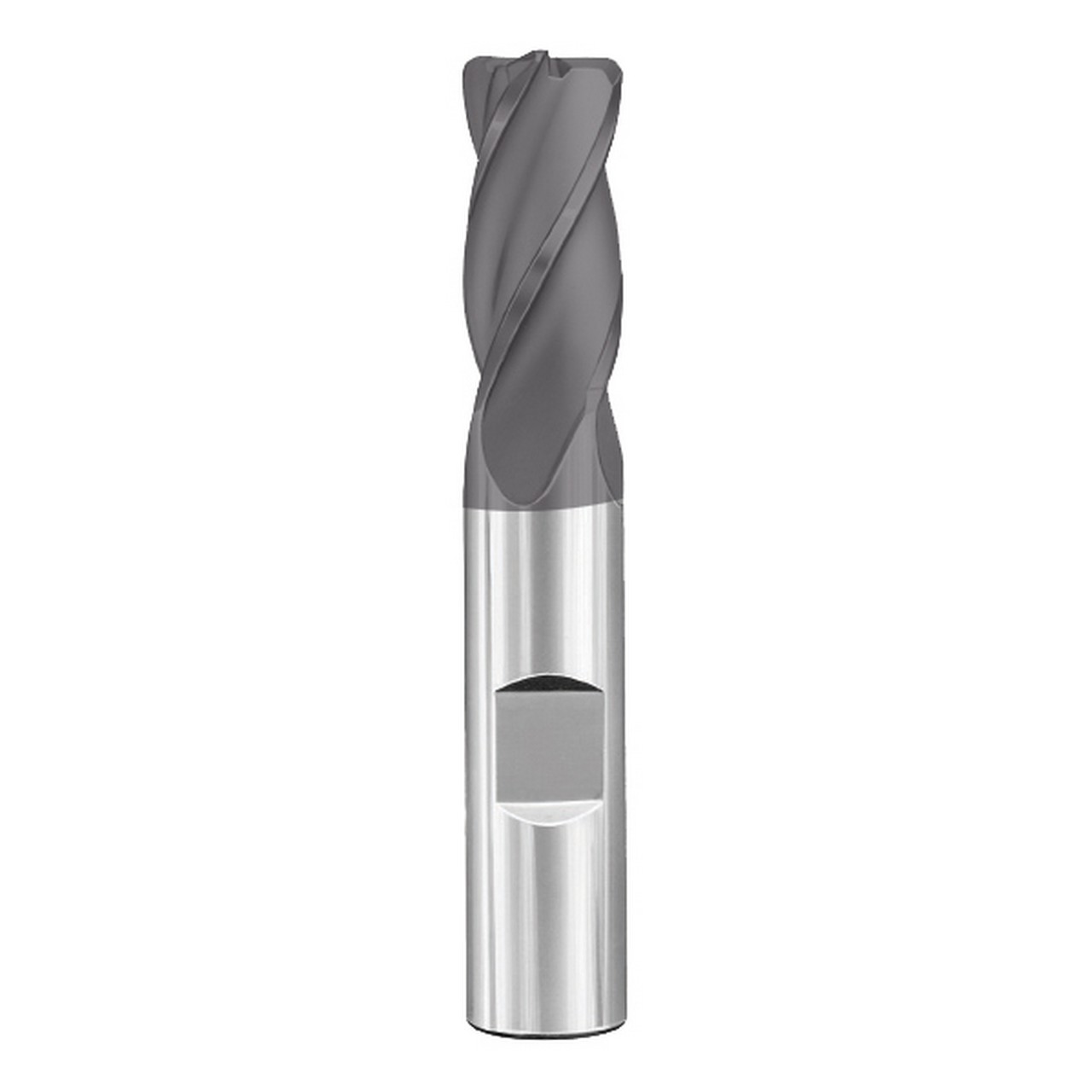

SGS 38160 | 3/16" Diameter x 3/16" Shank x 5/8" LOC x 2" OAL 4 Flute AlTiN Coated Corner Radius End Mill

$16.35
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Cutting Direction:
RHC
SKU:
25197412
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)3/16"
Shank Diameter (Inch)3/16"
Length of Cut (Inch)5/8"
Overall Length (Inch)2"
Shank Length (Inch)1.375"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.02"
Helix Angle30 Degree
CoatingAlTiN
Number of Flutes4

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TA
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.8mm
Cutting Direction:
RHC
