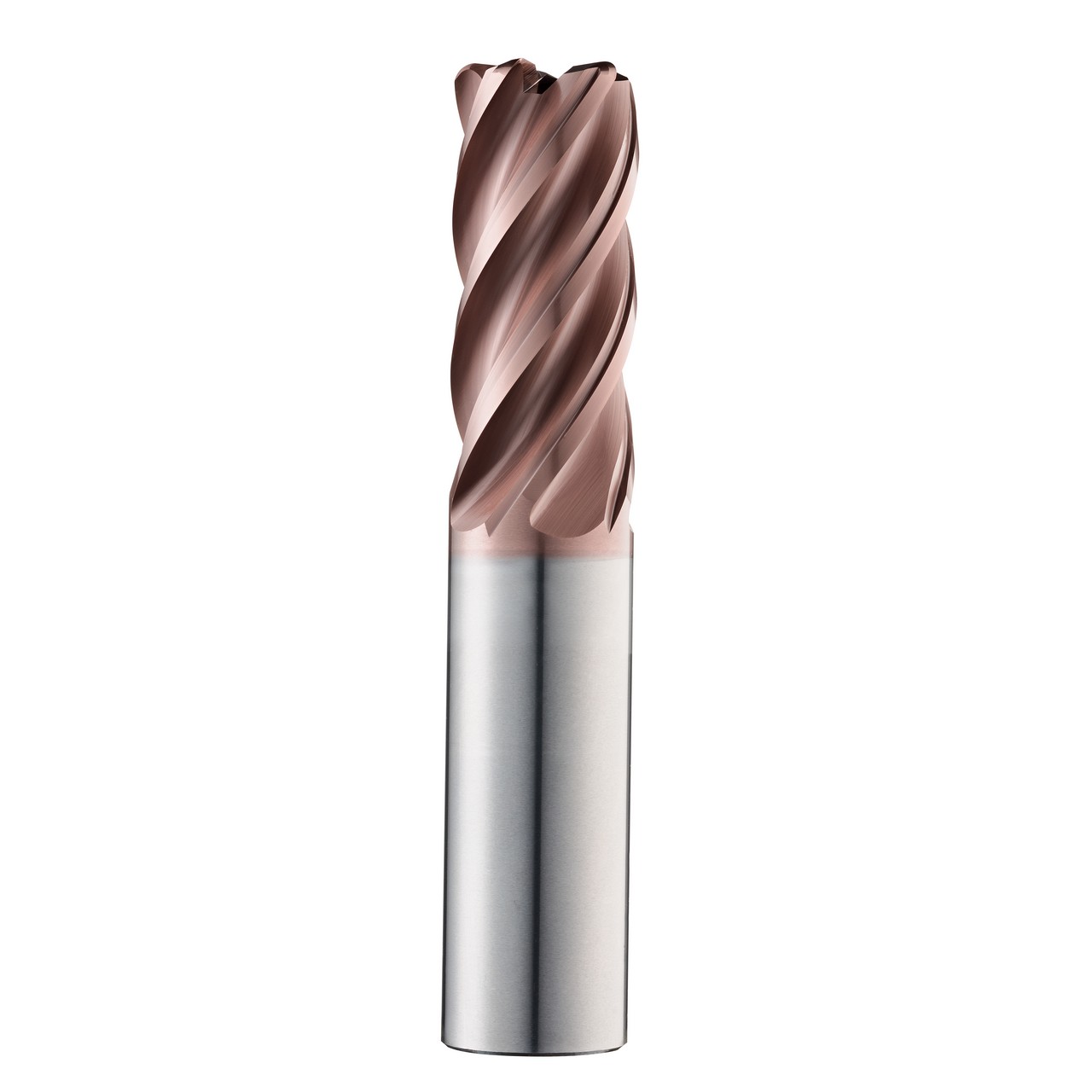

SGS 38808 | 5/16" Diameter x 5/16" Shank x 5/8" LOC x 2-1/2" OAL 5 Flute TM Coated Corner Radius End Mill

$51.88
Brand:
SGS
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
TM
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
RHC
SKU:
25197825
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Features:
  • An ideal balance of helix, indexing, flute depth, rake and relief
  • Variable indexing for chatter supression and patented edge geometry for shearing and strength
  • Chatter-free geometry allows deep cutting and high speed machining
  • Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
  • Excels at roughing, ramping, high speed machining and finishing in a variety of materials
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRc (≤ 420 Bhn)

Product Specifications
Cutting Diameter (Inch)5/16"
Shank Diameter (Inch)5/16"
Length of Cut (Inch)5/8"
Overall Length (Inch)2-1/2"
Cut of DirectionRight Hand
Flute TypeSpiral
Corner Radius (Inch)0.03"
Helix Angle37 Degree
CoatingTM
Number of Flutes5
