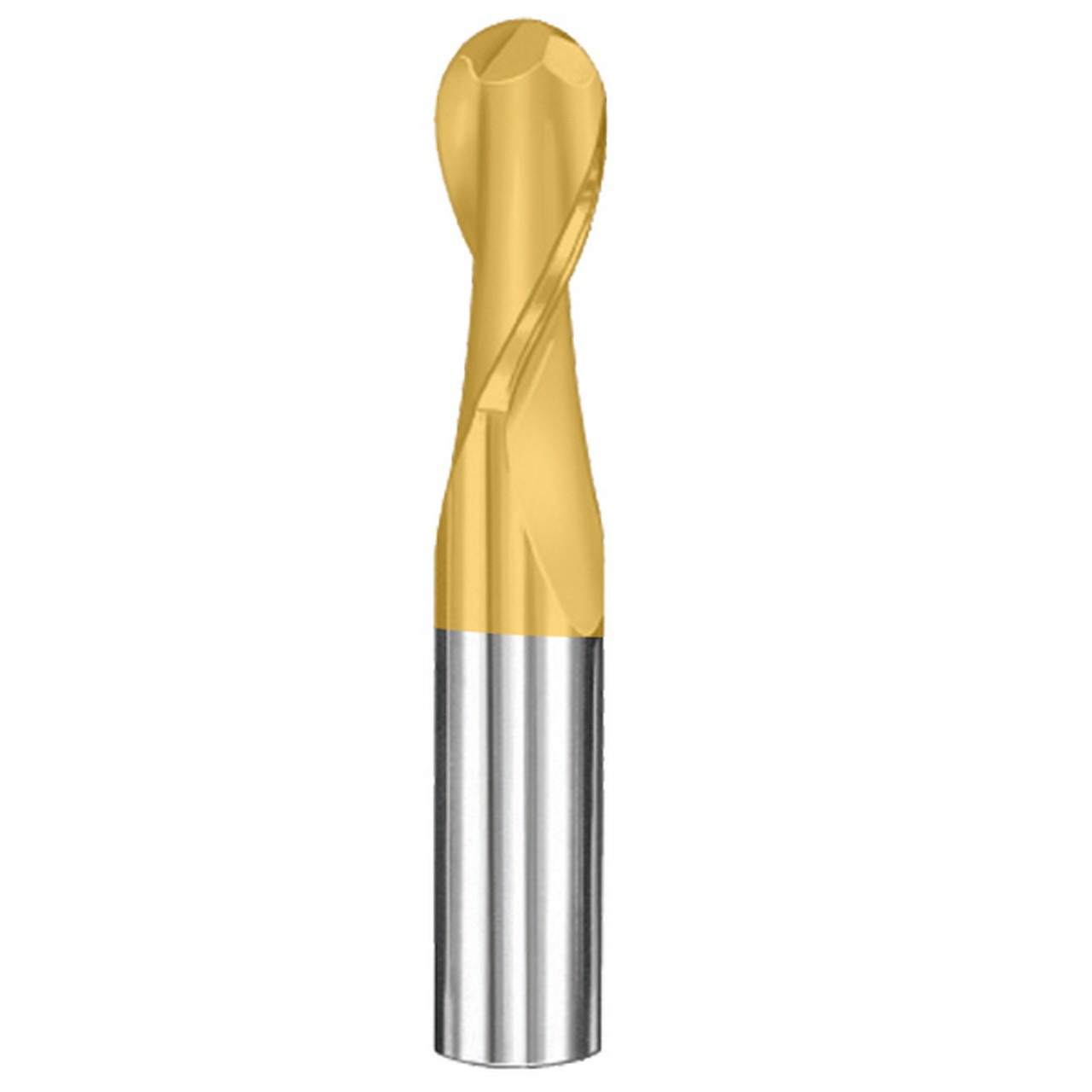

SGS 39346 | 23/64" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 2 Flute TiN Coated Ball End Mill

$32.86
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
TN
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
SKU:
25198110
Weight:
0.12 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)23/64"
Shank Diameter (Inch)3/8"
Length of Cut (Inch)1"
Overall Length (Inch)2-1/2"
Shank Length (Inch)1.5"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingTiN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
TN
Cutting Direction:
RHC
Helix Angle (Degree):
30 Degree
