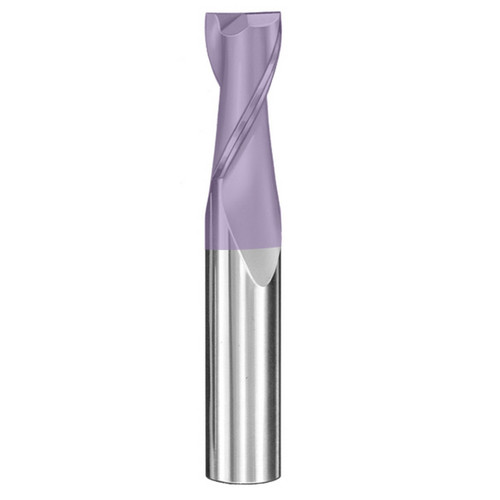

SGS 39501 | 1/64" Diameter x 1/8" Shank x 1/32" LOC x 1-1/2" OAL 2 Flute TiCN Coated Square End Mill

$20.51
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1/32"
Length of Cut (Decimal Inch):
0.0310"
Length of Cut (mm):
0.79mm
Finish/Coating:
TC
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
SKU:
25198145
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)1/64"
Shank Diameter (Inch)1/8"
Length of Cut (Inch)1/32"
Overall Length (Inch)1-1/2"
Shank Length (Inch)1.469"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle30 Degree
CoatingTiCN
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1/32"
Length of Cut (Decimal Inch):
0.0310"
Length of Cut (mm):
0.79mm
Finish/Coating:
TC
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.1mm
Helix Angle:
30 Degree
Cutting Direction:
RHC
