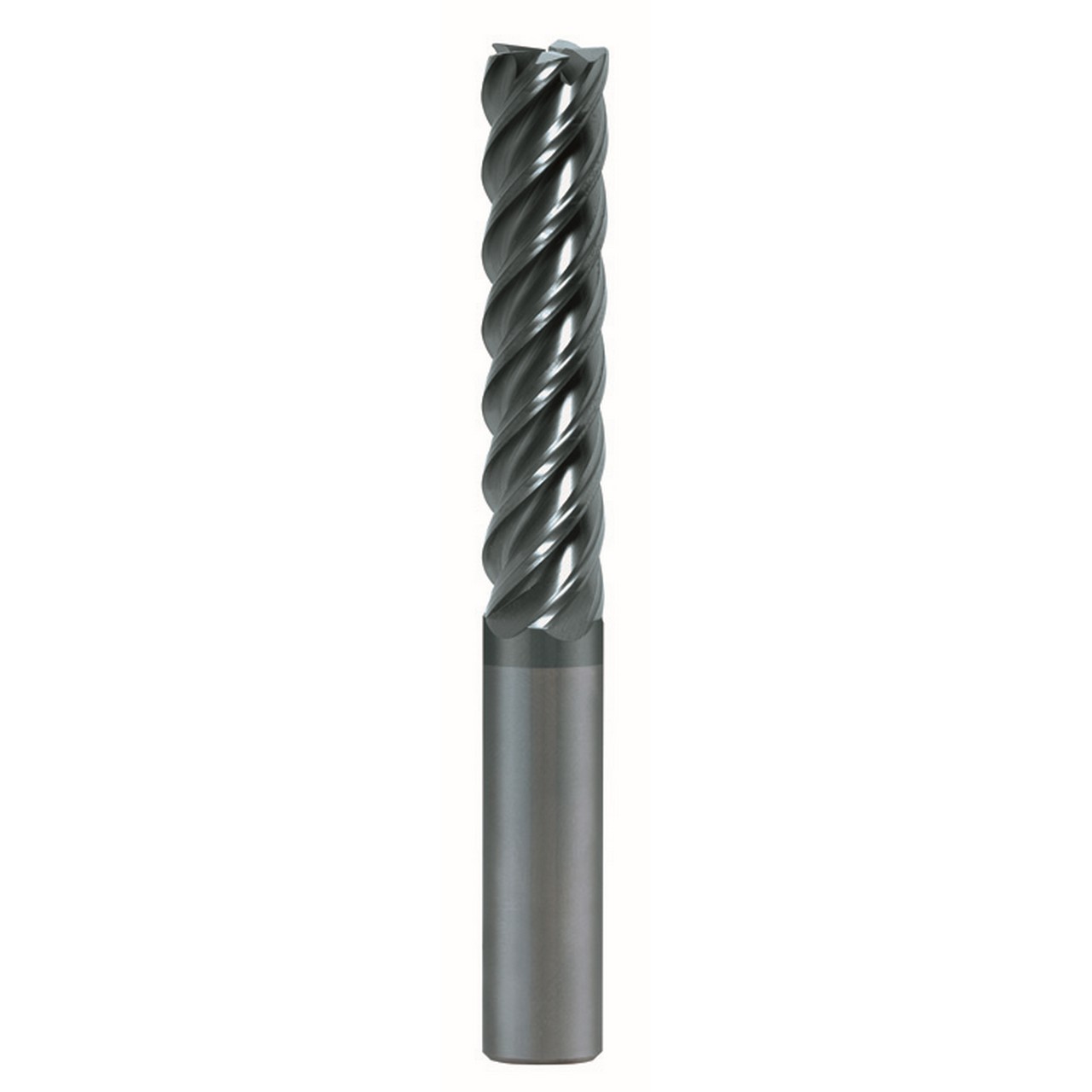

SGS 42656 | 16 mm Diameter x 16 mm Shank x 50 mm LOC x 100 mm OAL x 2.0 mm Radius 5 Flute AlTiN Coated Corner Radius End Mill

$385.88 $231.53
(You save $154.35)
Brand:
SGS
Number of Flutes:
5
Corner Radius (Inch):
5/64"
Corner Radius (Decimal Inch):
0.0787"
Corner Radius (mm):
2mm
Length of Cut (Inch):
1-31/32"
Length of Cut (Decimal Inch):
1.9685"
Length of Cut (mm):
50mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Cutting Direction:
RHC
SKU:
25198645
UPC:
Weight:
0.61 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
  • The choice when peak finish quality is the requirement
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (Inch)16 mm
Shank Diameter (Inch)16 mm
Length of Cut (Inch)50 mm
Overall Length (Inch)100 mm
Shank Length (Inch)50 mm
Cut of DirectionRHC
Flute TypeSpiral
Corner Radius (Inch)2.0 mm
Helix Angle45 Degree
CoatingAlTiN
Number of Flutes5

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
5
Corner Radius (Inch):
5/64"
Corner Radius (Decimal Inch):
0.0787"
Corner Radius (mm):
2mm
Length of Cut (Inch):
1-31/32"
Length of Cut (Decimal Inch):
1.9685"
Length of Cut (mm):
50mm
Finish/Coating:
TA
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Cutting Direction:
RHC
