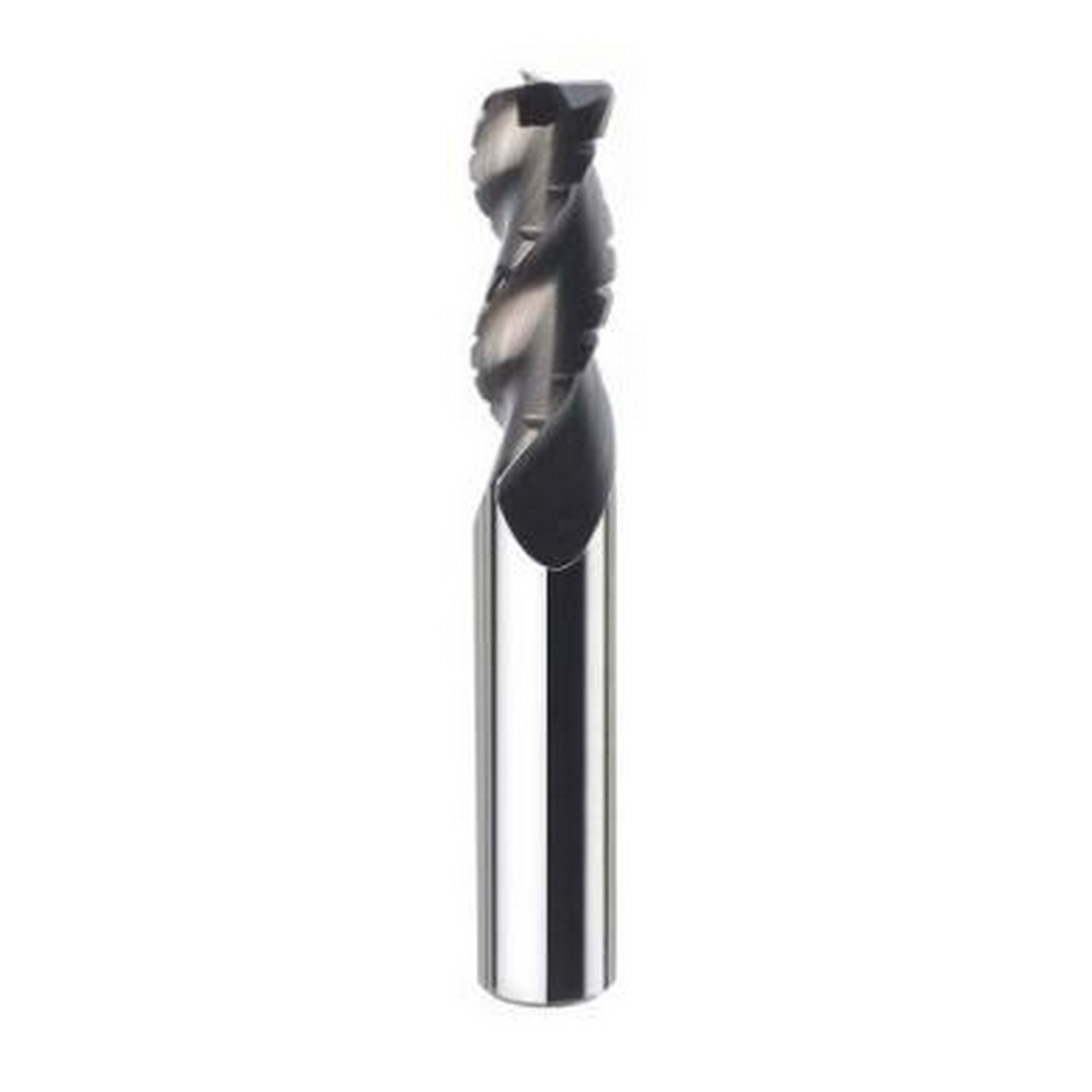

SGS 44303 | 16.0mm Diameter x 16.0mm Shank x 32.0mm LOC x 92.0mm OAL 3 Flute Uncoated Roughing End Mill

$179.07
Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1-17/64"
Length of Cut (Decimal Inch):
1.2598"
Length of Cut (mm):
32mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Finish/Coating:
Uncoated
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92mm
SKU:
25198897
UPC:
691781443034
Weight:
0.51 LBS
Shipping:
Free Shipping

Features:

  • Circular land allows for increased control at various speed and feed rates and reduces chatter
  • Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
  • Chip breakers reduce machine loads up to 15% for increased roughing feed rate capability
  • Open fluting for deep slotting and profiling
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm)16.0mm
Shank Diameter (mm)16.0mm
Length of Cut (mm)32.0mm
Overall Length (mm)92.0mm
Shank Length (mm)60.0mm
Cut of DirectionRHC
Flute TypeSpiral
Corner Radius (mm)1.1 mm
Helix Angle38 Degree
CoatingUncoated
Number of Flutes3

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Number of Flutes:
3
Length of Cut (Inch):
1-17/64"
Length of Cut (Decimal Inch):
1.2598"
Length of Cut (mm):
32mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Finish/Coating:
Uncoated
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92mm
