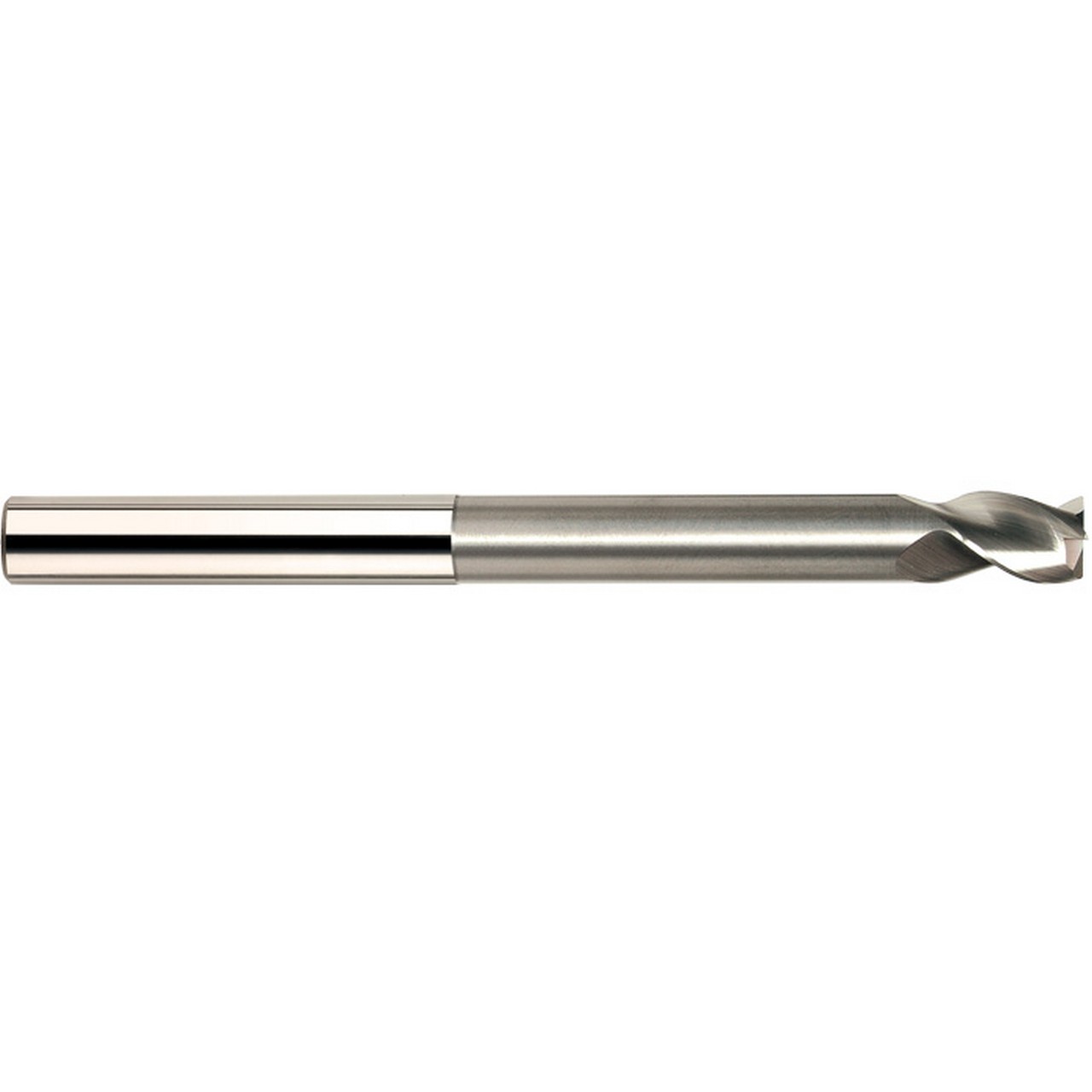

Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
- Open fluting for deep slotting and profiling
- Polished flutes maximize chip evacuation and provides enhanced finish
- Necked design with blended diameter transitions provide clearance to reach
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (mm) | 8.0mm |
| Shank Diameter (mm) | 8.0mm |
| Length of Cut (mm) | 12.0mm |
| Overall Length (mm) | 75.0mm |
| Shank Length (mm) | 63.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Reach (mm) | 25mm |
| Corner Radius (mm) | 1 mm |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
3
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0197"
Corner Radius (mm):
0.5mm
Length of Cut (Inch):
15/32"
Length of Cut (Decimal Inch):
0.4724"
Length of Cut (mm):
12.00mm
Finish/Coating:
TB
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75mm
Cutting Direction:
RHC
