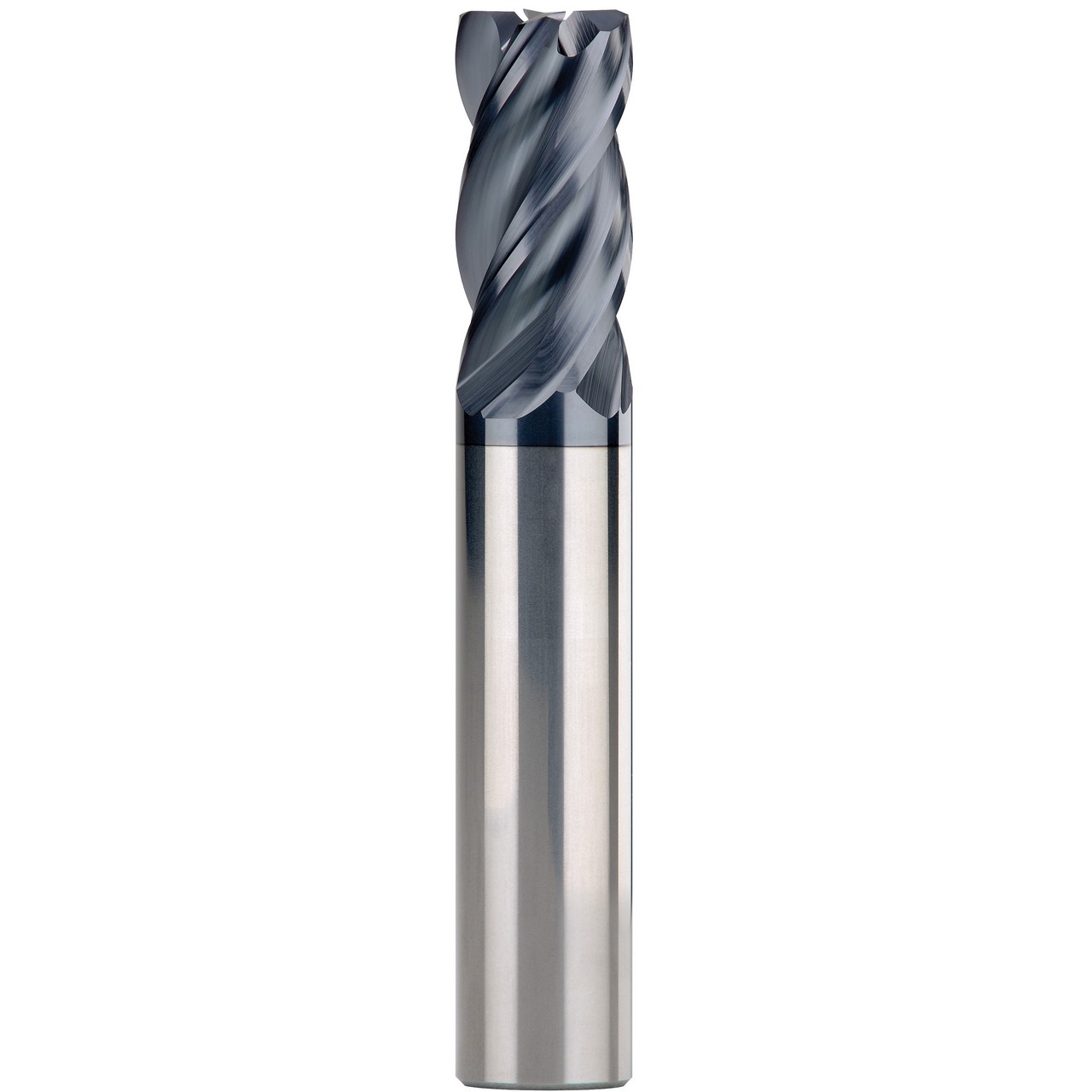

Features:
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design changes the cutting angle to improve harmonics
- Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 6.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 13.0mm |
| Overall Length (mm) | 57.0mm |
| Shank Length (mm) | 43.9mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (mm) | 1 mm |
| Helix Angle | 35-38 Degree |
| Coating | TX |
| Number of Flutes | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
4
End Type:
Corner Radius
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0197"
Corner Radius (mm):
0.5mm
Length of Cut (Inch):
33/64"
Length of Cut (Decimal Inch):
0.5118"
Length of Cut (mm):
13mm
Finish/Coating:
TX
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2441"
Overall Length (mm):
57mm
Cutting Direction:
RHC
