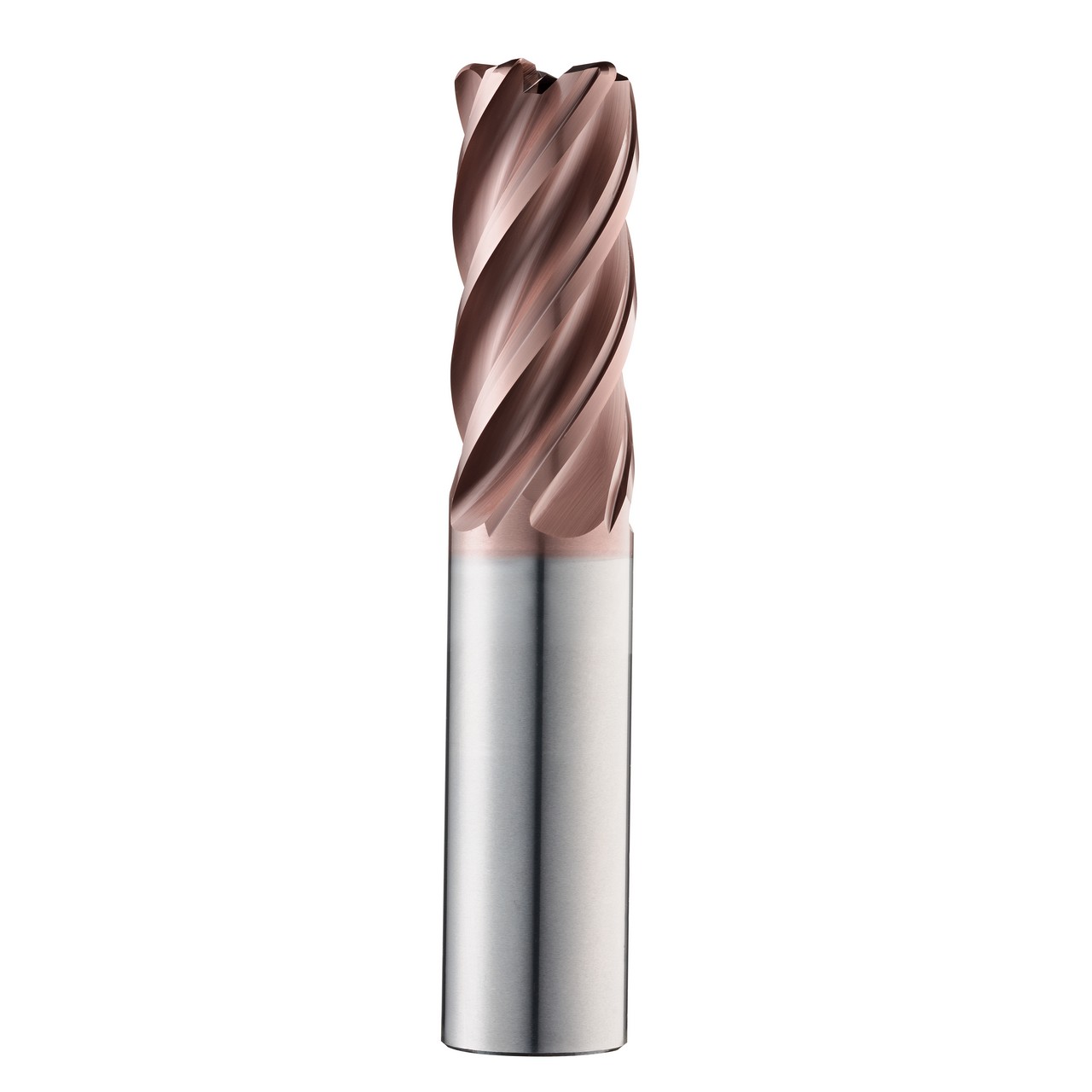

Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (Inch) | 16 mm |
| Shank Diameter (Inch) | 16 mm |
| Length of Cut (Inch) | 35.1 mm |
| Overall Length (Inch) | 92 mm |
| Shank Length (Inch) | 57.1 mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (Inch) | 4.1 mm |
| Helix Angle | 37 Degree |
| Coating | TM |
| Number of Flutes | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Number of Flutes:
5
End Type:
Corner Radius
Corner Radius (Inch):
5/32"
Corner Radius (Decimal Inch):
0.1575"
Corner Radius (mm):
4mm
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3780"
Length of Cut (mm):
35mm
Finish/Coating:
TM
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92mm
Cutting Direction:
RHC
