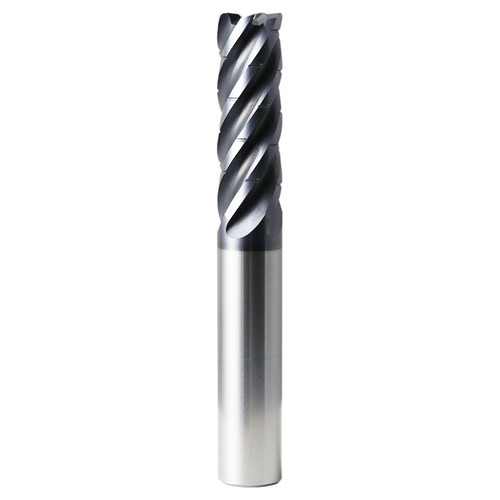

Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Enhanced corner geometry with tight tolerance corner radii
- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Product Specifications
| Manufacturer Part Number | 47533 |
| Cutting Diameter (Decimal Inch) | 0.472" |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 1.417" |
| Length of Cut (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 3.268" |
| Overall Length (mm) | 83.00mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |
| Product Type | Chip Breaker Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
SGS
Cutting Diameter (Inch):
42/89"
Cutting Diameter (Decimal Inch):
0.4720"
Cutting Diameter (mm):
12.00mm
Shank Diameter (Inch):
42/89"
Shank Diameter (Decimal Inch):
0.4720"
Shank Diameter (mm):
12.00mm
Overall Length (Inch):
3-26/97"
Overall Length (Decimal Inch):
3.2680"
Overall Length (mm):
83.00mm
Length of Cut (Inch):
1-5/12"
Length of Cut (Decimal Inch):
1.4170"
Length of Cut (mm):
36.00mm
Corner Radius (Inch):
1/50"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Finish/Coating:
AlTiN (Ti-NAMITE-A)
Number of Flute:
5
