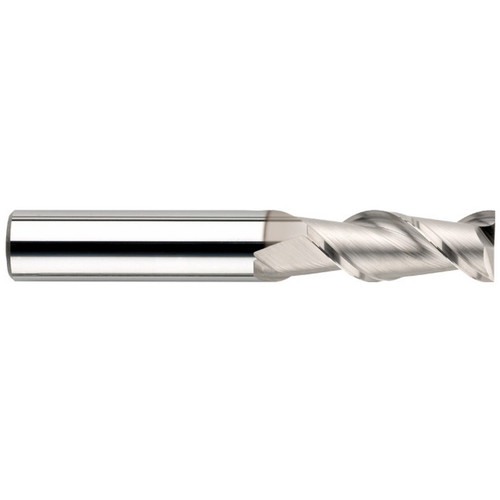

SGS 49676 | 5.0mm Diameter x 6.0mm Shank x 13.0mm LOC x 57.0mm OAL 2 Flute TiB2 Coated Square End Mill

$140.19 $67.29
(You save $72.90)
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
33/64"
Length of Cut (Decimal Inch):
0.5118"
Length of Cut (mm):
13mm
Finish/Coating:
TB
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2441"
Overall Length (mm):
57mm
Helix Angle:
45 Degree
Cutting Direction:
RHC
interval quantity:
1
SKU:
25200898
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features:

  • Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
  • Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm)5.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)13.0mm
Overall Length (mm)57.0mm
Shank Length (mm)44.0mm
Cut of DirectionRHC
Flute TypeSpiral
Helix Angle45 Degree
CoatingTiB2
Number of Flutes2
