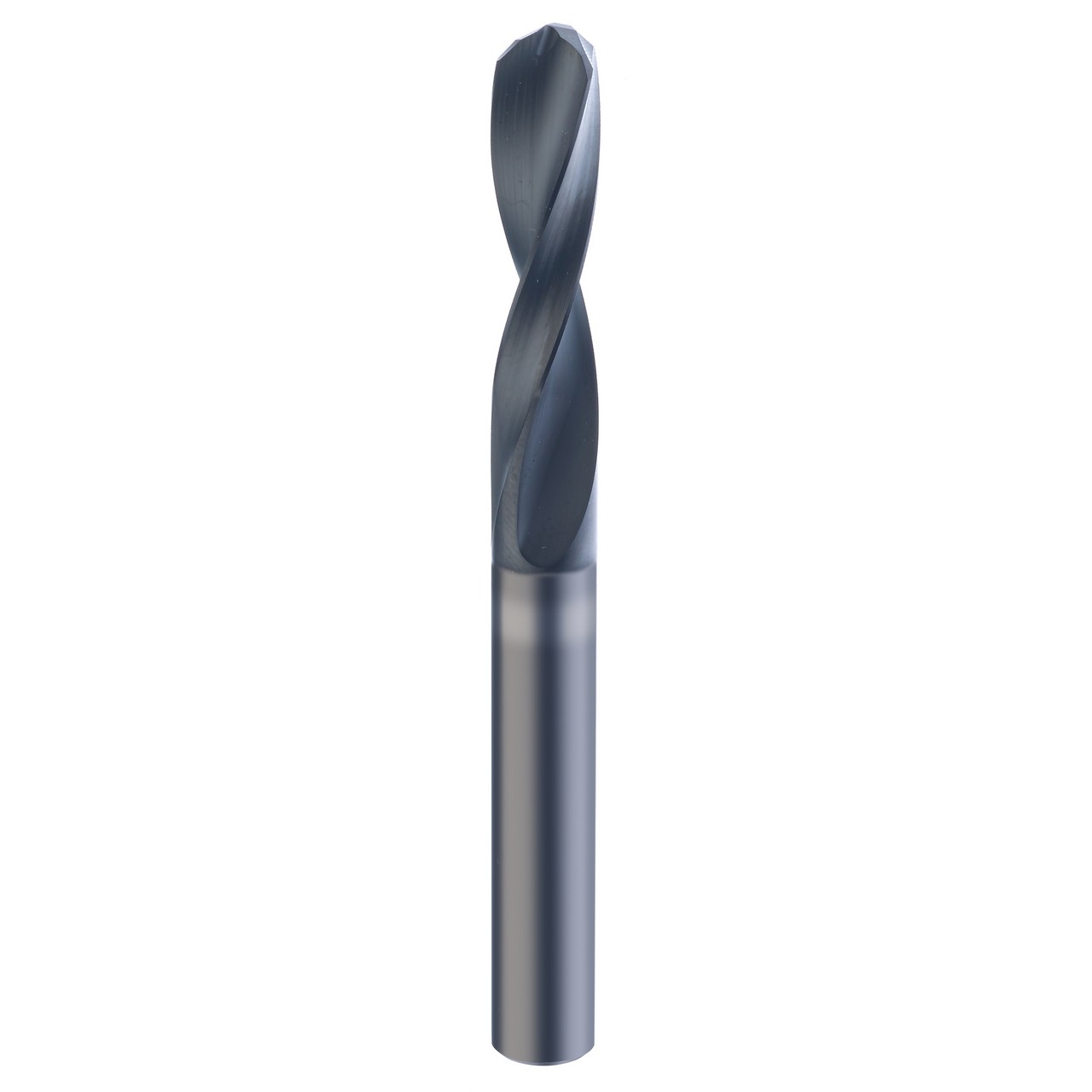

SGS 50010 | #19 x 0.25" Shank x 7/8" LOC x 2-5/8" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

$203.09
Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2-5/8"
Overall Length (Decimal Inch):
2.6250"
Overall Length (mm):
66.68mm
Finish/Coating:
TD
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10229034
Weight:
0.05 LBS
Shipping:
Free Shipping

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Wire Diameter#19
Cutting Diameter (Inch)0.166"
Shank Diameter (Inch)0.25"
Length of Cut (Inch)7/8"
Overall Length (Inch)2-5/8"
Shank Length (Inch)1.438"
Cut of DirectionRight Hand
Flute TypeSpiral
Cleared Length (Inch)0.7188"
Helix Angle20 Degree
Point Angle145 Degree
CoatingCrystalline Diamond
Number of Flutes2
