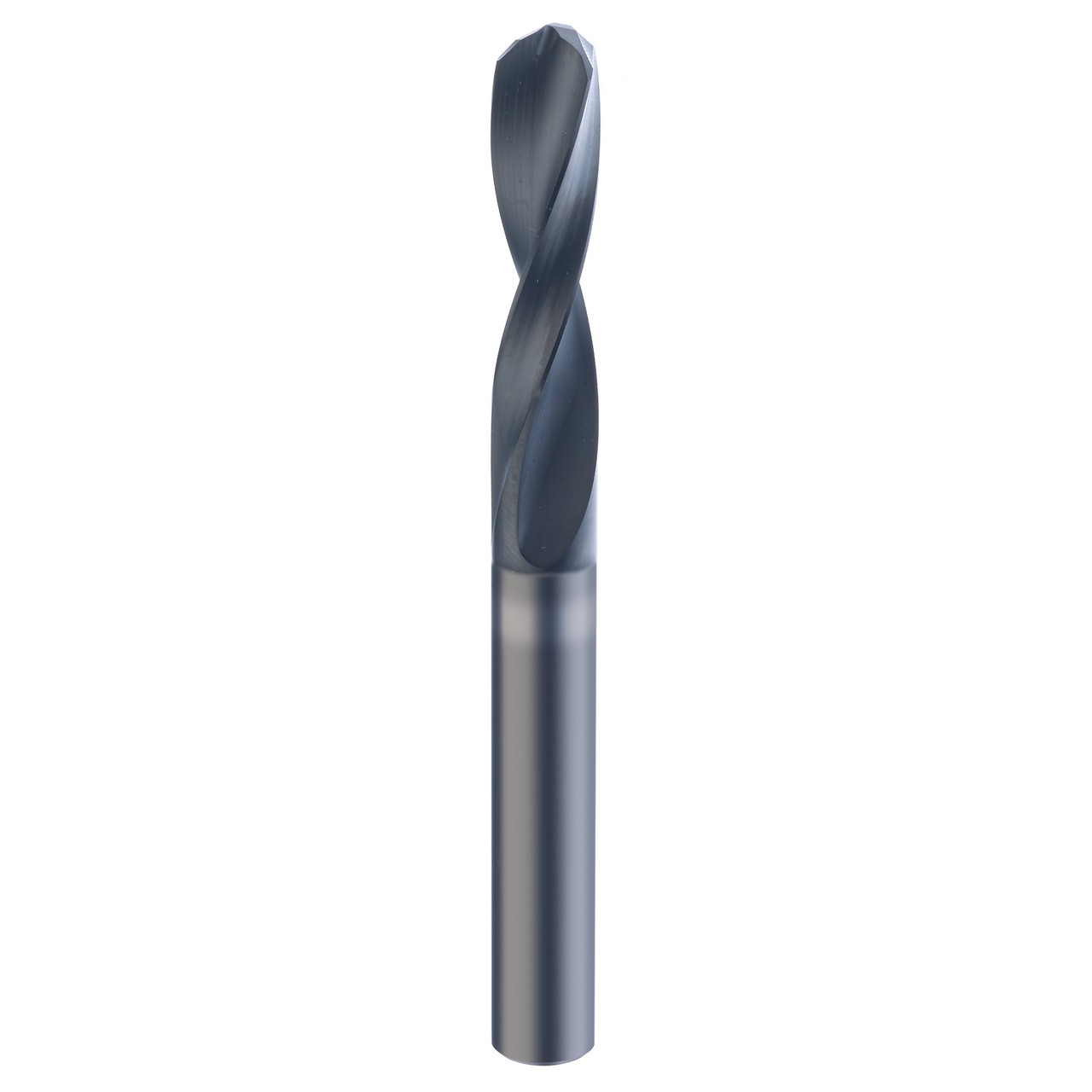

SGS 50017 | 6.0mm Diameter x 6.0mm Shank x 28.0mm LOC x 66.0mm OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

$229.42
Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66mm
Finish/Coating:
TD
Flute Type:
Spiral
Cutting Direction:
RHC
SKU:
10229041
Weight:
0.06 LBS
Shipping:
Free Shipping

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Cutting Diameter (mm)6.0mm
Shank Diameter (mm)6.0mm
Length of Cut (mm)28.0mm
Overall Length (mm)66.0mm
Shank Length (mm)36.0mm
Cut of DirectionRHC
Flute TypeSpiral
Cleared Length (mm)28 mm
Helix Angle20 Degree
Point Angle145 Degree
CoatingCrystalline Diamond
Number of Flutes2

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
SGS
Drill Point Angle:
145°
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.5984"
Overall Length (mm):
66mm
Finish/Coating:
TD
Flute Type:
Spiral
Cutting Direction:
RHC
